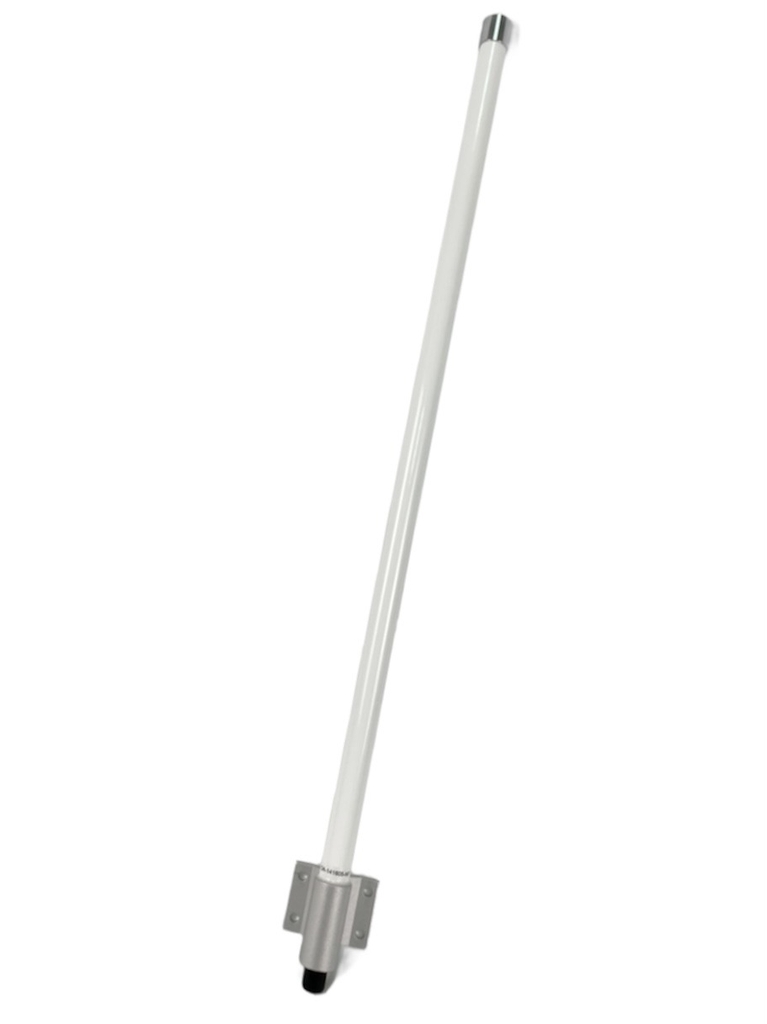

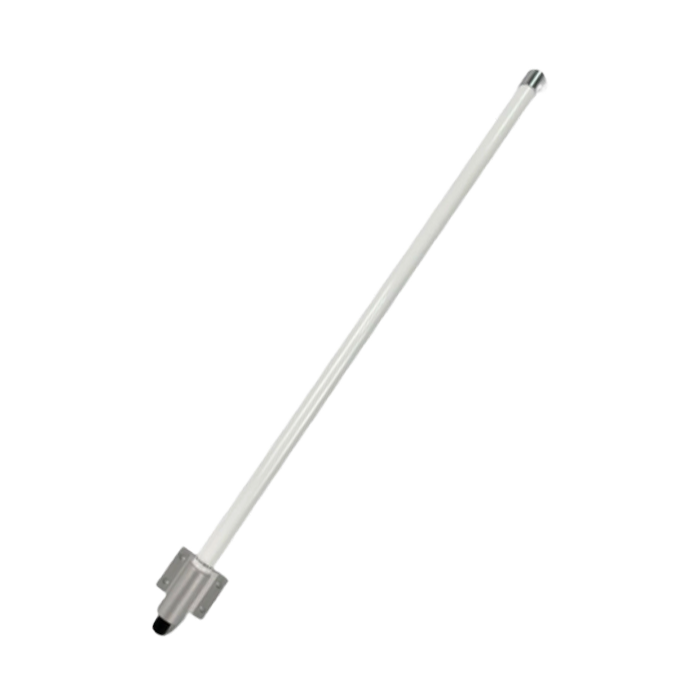

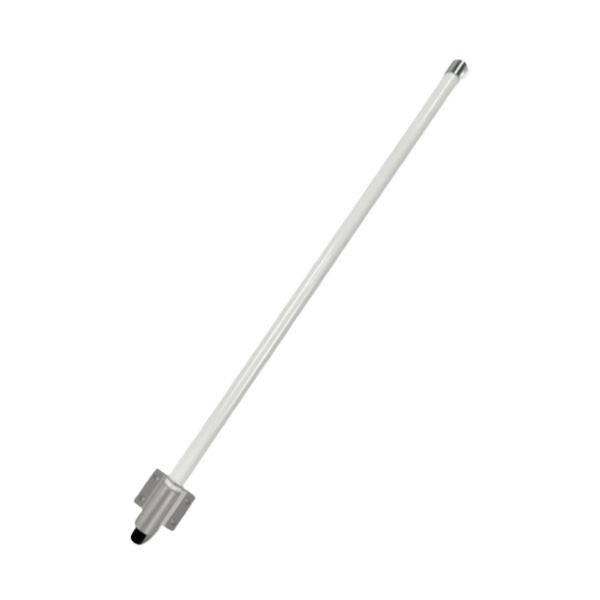

868 MHz to 870 Mhz 4dBi Omnidirectional Outdoor Antenna (EU868) N-Female

Model No: OA-868M04-NF

Mechanical Drawing:Download

  • Dimension : 670x70x55mm
  • Weight : 513g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.27 deg
INQUIRY

Applications:

  • 860MHz to 870MHz Band EU868 N-Female
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

860MHz to 870MHz

V.S.W.R (MAX)

868MHz: 1.5 :1

860MHz and 870MHz: <2.0

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

4 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

50 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length

665+/-5 mm

Diameter

70 x 55mm

Antenna Weight

513 g

Accessories

70 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Wall Mount
Mounting Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature -20 to +60
Operating Humidity 10%~80% non-condensing
Storage Humidity 5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
