L-Band Wireless Solutions
1.2GHz to 1.4GHz 14dBi Directional Patch Array Antenna
PA-1214M14-NF | Professional high-gain patch array engineered for mission-critical video transmission and long-range L-Band communication links.
Electrical Specifications
| Frequency Range | 1200 MHz – 1400 MHz |
| Gain | 14 dBi |
| V.S.W.R | ≤ 1.5 : 1 |
| Beam-width (-3dB) | Horz. 32° / Vert. 32° |
| Polarization | Vertical or Horizontal |
Mechanical Specifications

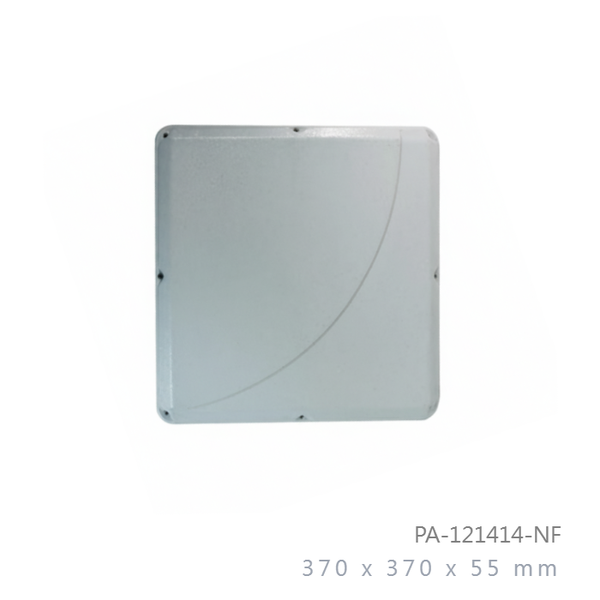

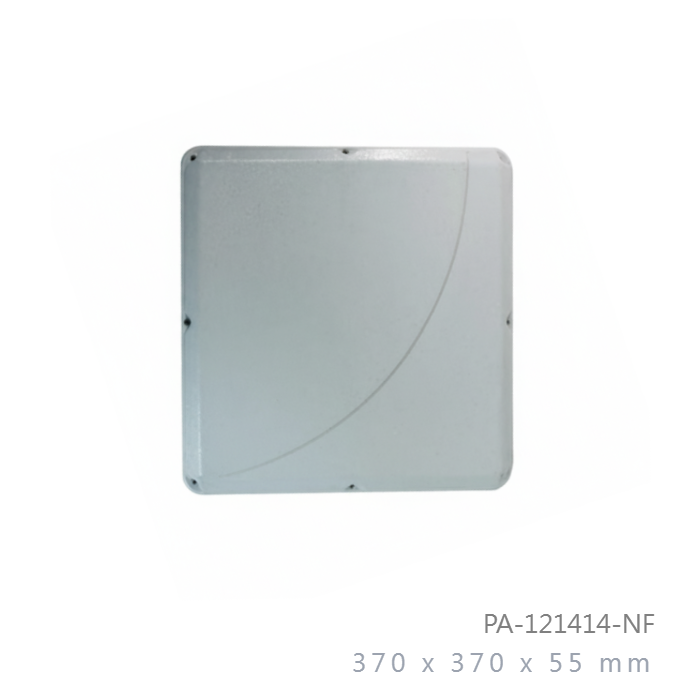

| Model Name | PA-1214M14-NF |

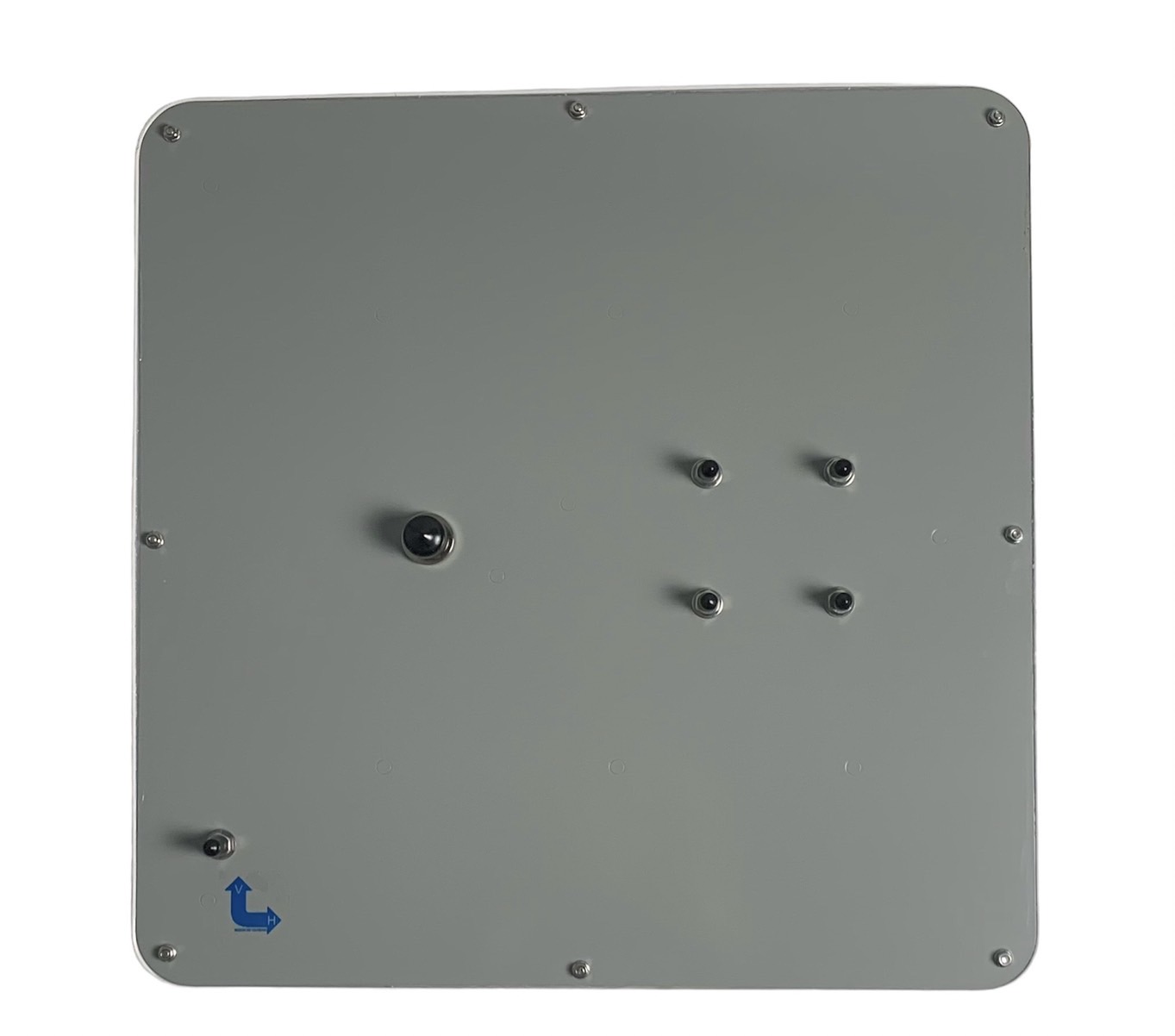

| Dimensions | 370 x 370 x 55 mm |

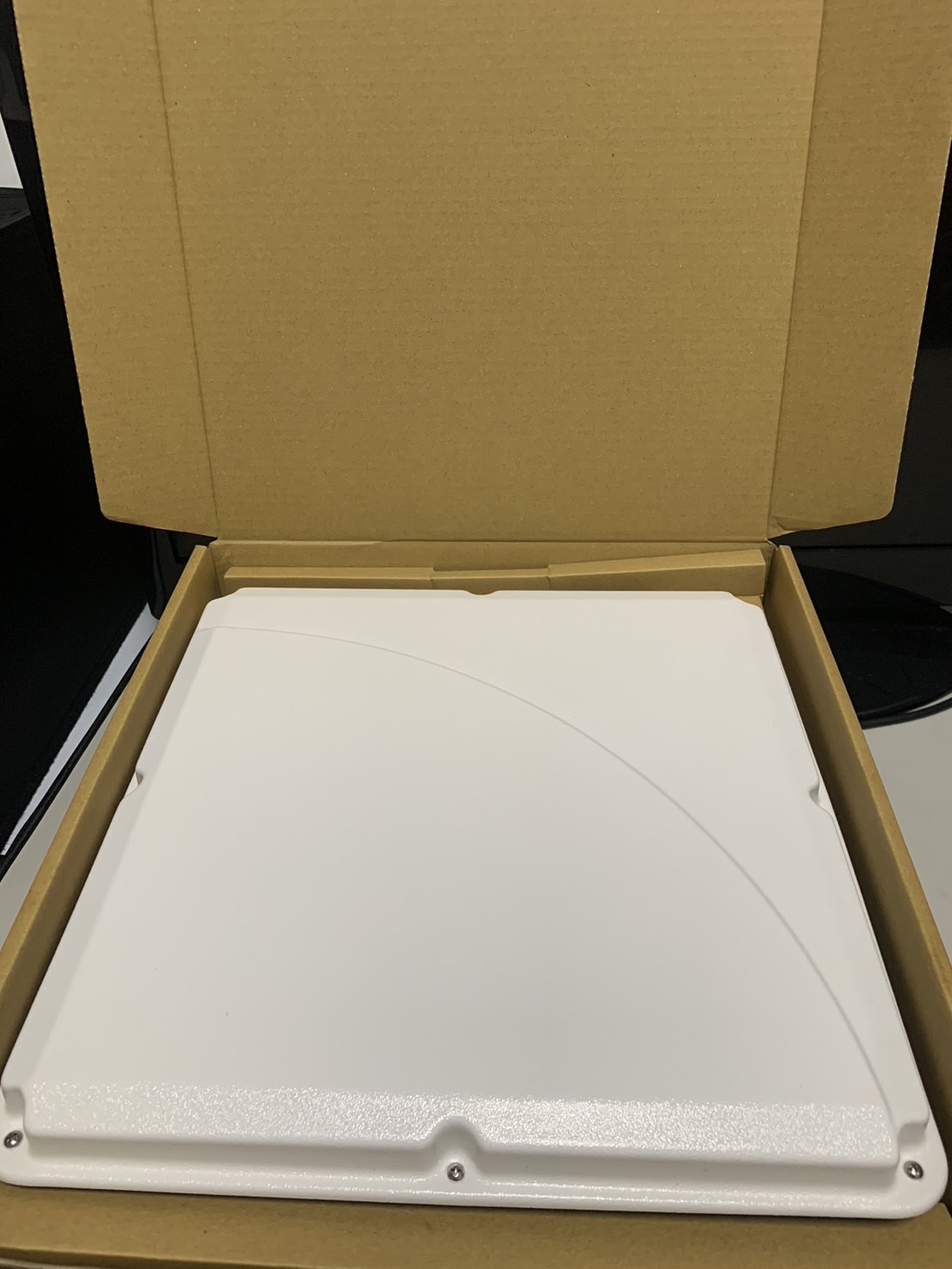

| Radome Material | White ABS (UV Protected) |
| Input Connector | N-Type Female |
| Origin | Designed and Made in Taiwan |
Engineering Core Features
Patch Array Design
Advanced planar microstrip technology delivers a high-gain, low-profile form factor for superior directional signal stability.
L-Band Specialized
Specifically tuned for the 1.2-1.4GHz spectrum, providing a stable 14dBi bridge for specialized video links and industrial telecommunications.
Extreme UV Protection
Durable white ABS radome construction ensures long-term resistance against harsh outdoor UV exposure and high moisture environments.
Precision Directionality
Features a precise 32-degree beamwidth optimized for long-distance point-to-point bridging with minimal interference.
