GNSS GPS Antennas



FT-RF GNSS GPS Antennas are engineered for high-precision positioning, navigation, and timing applications, supporting GPS, GLONASS, BeiDou, and Galileo satellite constellations.

Featuring low noise figure amplifiers (LNA) and excellent out-of-band rejection, these antennas ensure reliable signal acquisition even in challenging urban canyon environments, with IP67 waterproofing for outdoor deployment.

GNSS GPS Antennas
Key Engineering Parameter GNSS GPS Antennas Master Specifications
Frequency Range GPS L1/L2/L5, GLONASS G1/G2/G3, BeiDou B1/B2/B3, Galileo E1/E5a/E5b, L-Band
Polarization Right-Hand Circular Polarization (RHCP)
LNA Gain 28 dB to 40 dB High Gain Built-in Low Noise Amplifier
Voltage Supply 3.0V - 16V DC (Active Antenna)
Environmental Protection IP67 Waterproof Rating, UV-Resistant Fiberglass / PC Radome
Operating Temperature -40°C to +85°C (Industrial-grade rugged operational temperature range)

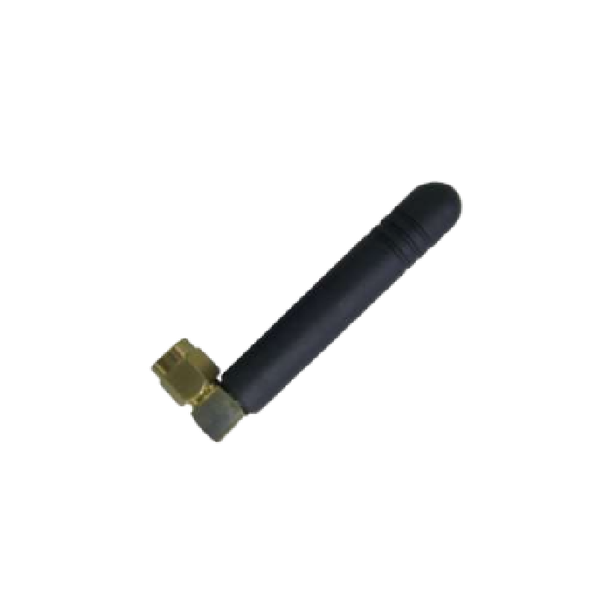

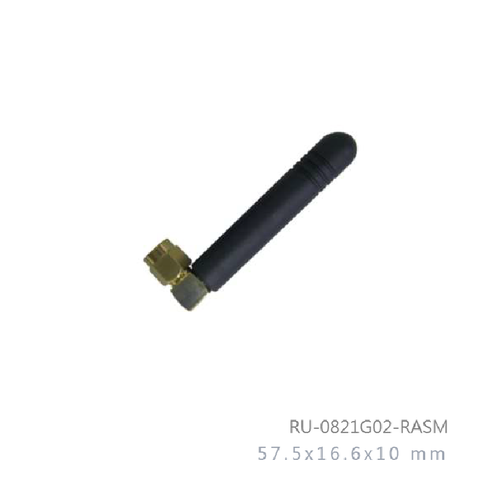

RU-0821G02-RASM

824MHz to 960MHz and 1710MHz to 2170MHz 2dBi Right Angle Rubber Antenna

  • Dimension: 57.5x16.6x10 mm
  • N.W: 30g
  • Connector: RA-SMA- Male
  • Beam-width: Horz.360 Deg Vert.68 Deg
