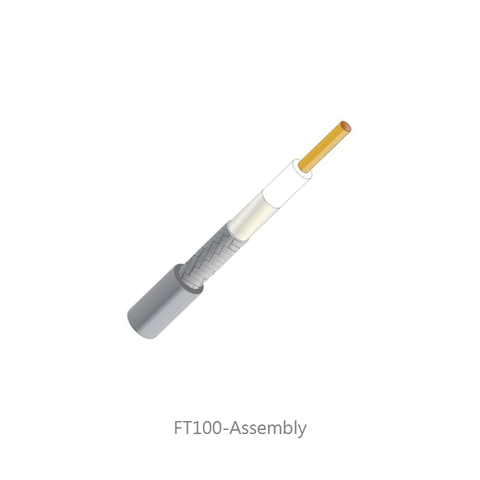

FTxxx Low Loss Coaxial Cable

• Impedance: 50 Ohm
• Capacitance: 101.1 pF/M
• Conductor: Bare Copper Wire
• Shield Coverage: 95 %
• Minimum Bend Radius: 5 x 2.80mm

Please contact us for details <info-tw@ft168.com.tw>

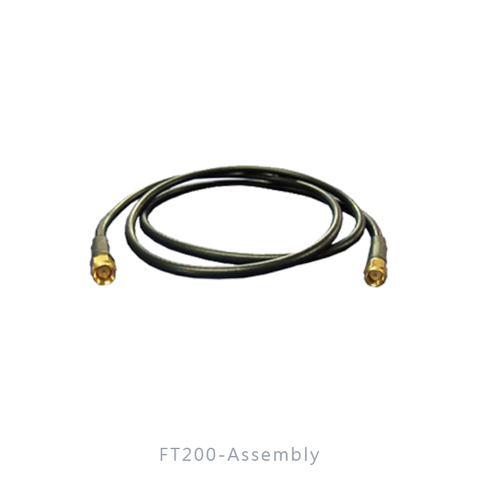

FT200 Low loss Coaxial Cable Assembly

Please contact us for details <info-tw@ft168.com.tw>

Electrical Characteristics Frequency(MHz) 30 50 150 220 450 900 1500 1800 2000 2500 5800 Attenuation(M/dB) 0.035 0.045 0.079 0.096 0.138 0.199 0.26 0.287 0.303 0.342 0.542 Attenuation(ft/dB) 0.011 0.014 0.024 0.029 0.042 0.0061 0.079 0.087 0.092 0.104 0.165 Avg.Power(W) 2090 1620 920 760 520 360 280 250 240 210 130 Max Cable Loss  ={(Cable length x Frequency Attenuation)+ 0.4 } Conductor Part Designation Material Outer Diameter (mm) Inner conductor Solid Copper Wire Nominal 1.78 Insulation Foam polyethylene Nominal 4.84 Shield Aluminum/PE...

Please contact us for details <info-tw@ft168.com.tw>
