4G LTE & 5G SUB-6 FREQUENCY BANDS

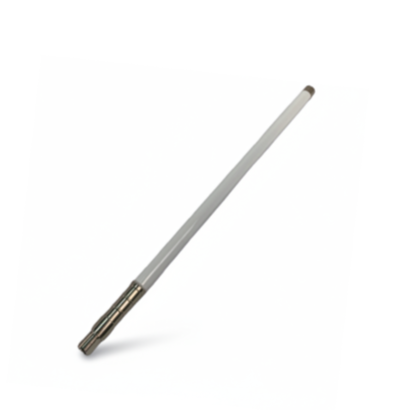

Cellular & 4G / 5G Omni Antennas (OS)



OS Series antennas are engineered for the evolving landscape of 4G LTE and 5G Sub-6 GHz cellular networks, providing reliable omni-directional coverage for both residential and commercial deployments.

Supporting ultra-wideband frequencies from 600 MHz to 6 GHz, these antennas ensure seamless connectivity across all major carriers, while the robust construction offers IP67 weatherproofing for outdoor resilience.

Cellular & 4G/5G Omni Antennas (OS)
Key Applications & Deployments:
4G / 5G Fixed Wireless Access (FWA) Rural & Remote Broadband Cellular Modem / Router Boosting MVNO & Carrier Aggregation Industrial IoT Cellular Gateways Emergency & Temporary Coverage
Category Parameter Technical Specifications
Frequency Range 600 MHz - 6000 MHz Ultra-Wideband (4G LTE / 5G Sub-6 / CBRS)
Gain Range 4 dBi to 9 dBi High Efficiency Omni
Weatherproofing IP67 Rated Weatherproof Fiberglass Radome
Send Technical Inquiry
OS-915M06C-NF

902MHz to 928MHz 6dbi Mini Omni Directional Outdoor Antenna

  • Connector: N-Female
View Details
OS-923M03-NF

Mini Omni Directional Outdoor Antenna 923 MHz 3dbi (AS923)

Made in Taiwan
Freq. Range: 900 - 945 MHz
Antenna Type: Mini Omni LoRa
Gain: 3 dBi
Connector: N-Type Female

📄 INQUIRY
View Details
OS-868M03-NM

868MHz 3dBi Mini Omni Directional Outdoor Antenna (N-Male)

  • Dimension : 295x20x20mm
  • Weight : 180g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.110 deg
View Details
OS-915M03-NM

902 MHz to 928 MHz 3dBi Mini Omni Directional Outdoor Antenna (N-Male)

  • Dimension : 315x24mm
  • Weight : 180g
  • Connector : N-male
  • Beam-width : Horz.360 deg Vert.76 deg
View Details

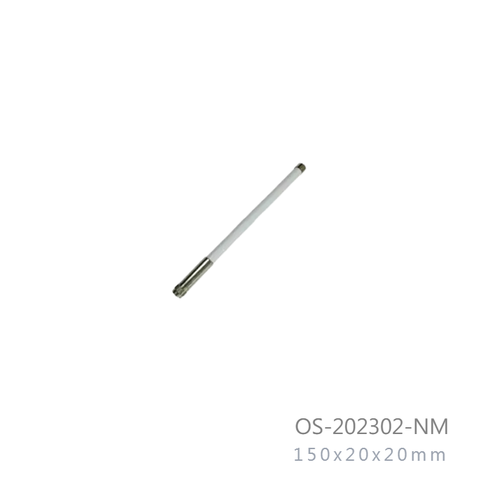

OS-202302-NM

2.0GHz to 2.3GHz 2dBi Outdoor Mini OMNI Directional Antenna

  • Dimension : 150x20x20mm
  • Weight : 110g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.48 deg
View Details

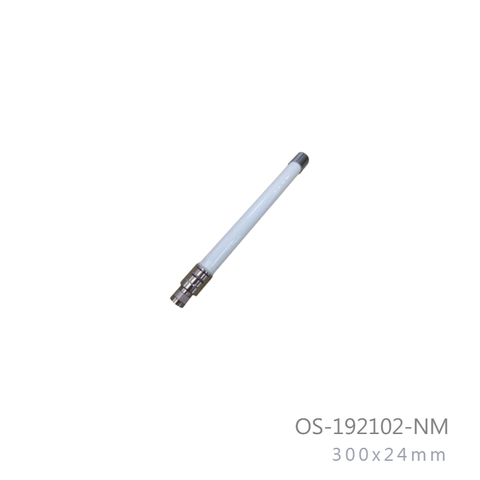

OS-192102-NM

1920MHz to 2170MHz 2dBi Mini Omni Directional Outdoor Antenna (N-Male)

  • Dimension : 300x24mm
  • Weight : 180g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.72 deg
View Details

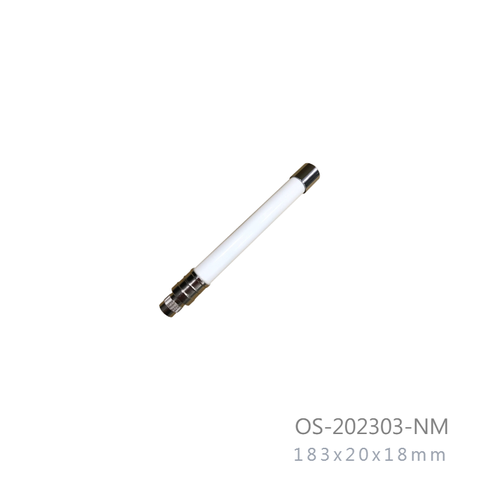

OS-202303-NM

2.0GHz to 2.3GHz 3dBi Outdoor Mini OMNI Directional Antenna (N-Male)

  • Dimension : 183x20x18mm
  • Weight : 95g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.48 deg
View Details

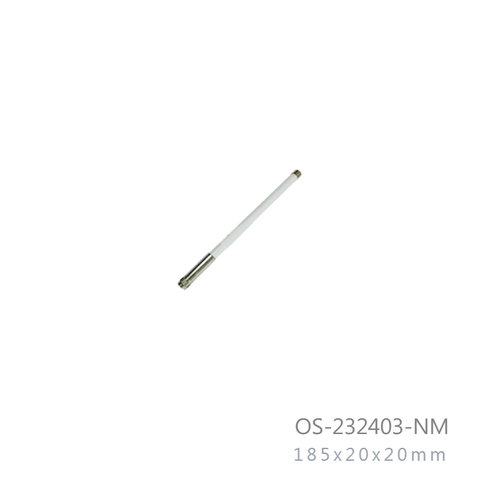

OS-232403-NM

2.3GHz to 2.4GHz 3dBi Outdoor Mini OMNI Directional Antenna (N-Male)

  • Dimension : 185x20x20mm
  • Weight : 140g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.78 deg
View Details

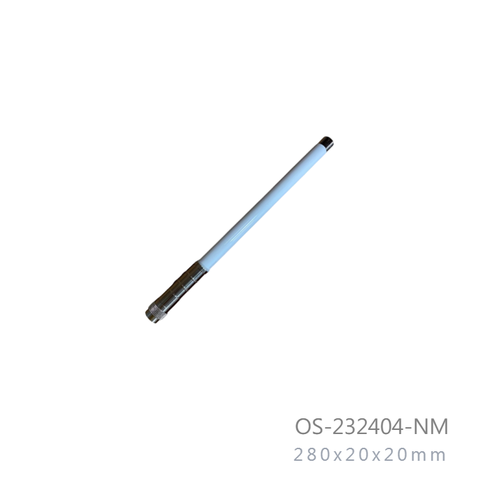

OS-232404-NM

2.3GHz to 2.4GHz 4dBi Outdoor Mini OMNI Directional Antenna (N-Male)

  • Dimension : 280x20x20mm
  • Weight : 180g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.50 deg
View Details

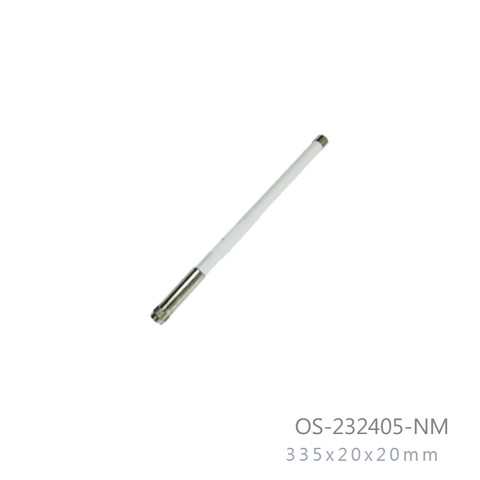

OS-232405-NM

2.3GHz to 2.4GHz 5dBi Outdoor Mini OMNI Directional Antenna (N-Male)

  • Dimension : 335x20x20mm
  • Weight : 190g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.38 deg
View Details
OS-232406-NM

2.3GHz to 2.4GHz 6dBi Outdoor Mini OMNI Directional Antenna (N-Male)

  • Dimension : 335x20x20mm
  • Weight : 215g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.25 deg
View Details
OS-232407-NM

2.3GHz to 2.4GHz 7dBi Outdoor Mini OMNI Directional Antenna (N-Male)

  • Dimension : 450x20x20mm
  • Weight : 235g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.18 deg
View Details
