Sector Antennas

BASE STATION COVERAGE SECTORS

Sector Antennas



Base station sector antennas offering precise 60°, 90°, and 120° horizontal beamwidths for cell site coverage.

Equipped with mechanical downtilt hardware and dual-slant polarization for high-capacity sectorization.

Sector Antennas
Key Applications & Deployments: WISP Tower Sectorization Cellular Macro Sites Mining Site Coverage
Category Parameter Technical Specifications
Azimuth Beamwidth 60° / 90° / 120° Options
Port Isolation > 30 dB High Isolation
Send Technical Inquiry

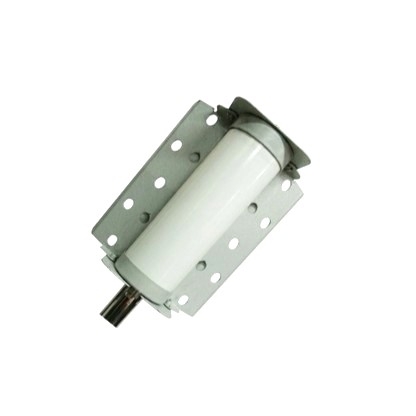

SE-242512C-NF

2.4GHz-2.5GHz 7-12dBi Adjust 45-120 Deg Vertical Sector Directional Outdoor Antenna

  • Dimensions: 230x200x80mm
  • Weight: 2.5 KG
  • Connector: N-Female
  • Beam-width: Horz.45-120 Deg Vert.20-30 Deg
View Details
SE-242516C-NF

2.4GHz-2.5GHz 13-16dBi Adjust 45-120 Deg Vertical Sector Directional Outdoor Antenna

  • Dimensions: 485x200x80mm
  • Weight: 2.3 KG
  • Connector: N-Female
  • Beam-width: Horz.45-120 Deg Vert.10-15 Deg
View Details
SE-242518C-NF

2.4GHz-2.5GHz 15-18dBi Adjust 45-120 Deg Vertical Sector Directional Outdoor Antenna

  • Dimensions: 760x200x80mm
  • Weight: 4.5 KG
  • Connector: N-Female
  • Beam-width: Horz.45-120 Deg Vert.8-12 Deg
View Details
SE-242520C-NF

2.4GHz-2.5GHz 17-20dBi Adjust 45-120 Deg Vertical Sector Directional Outdoor Antenna

  • Dimensions: 880x200x80mm
  • Weight: 5.2 KG
  • Connector: N-Female
  • Beam-width: Horz.45-120 Deg Vert.10-6 Deg
View Details
SE-242521C-NF

2.4GHz-2.5GHz 18-21dBi Adjust 45-120 Deg Vertical Sector Directional Outdoor Antenna

  • Dimensions: 1280x200x80mm
  • Weight: 6.2 KG
  • Connector: N-Female
  • Beam-width: Horz.45-120 Deg Vert.5-7 Deg
View Details
SE-242522C-NF

2.4GHz-2.5GHz 19-22dBi Adjust 45-120 Deg Vertical Sector Directional Outdoor Antenna

  • Dimensions: 1520x200x80mm
  • Weight: 6.7 KG
  • Connector: N-Female
  • Beam-width: Horz.45-120 deg Vert.4-6 deg
View Details

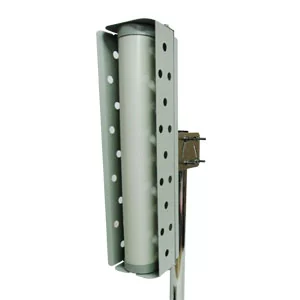

SE-515918C-NF

5.125GHz-5.875GHz 14-18dBi Adjust 45-120 Deg Vertical Sector Directional Outdoor Antenna

  • Dimensions: 500x200x80mm
  • Weight: 2.4KG
  • Connector: N-Female
  • Beam-width: Horz.45-120 Deg Vert.11-15 Deg
View Details

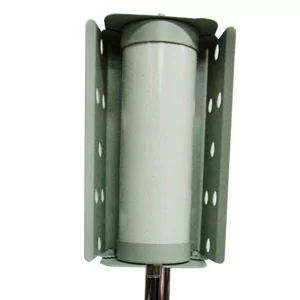

SE-515914C-NF

5.125GHz-5.875GHz 10-14dBi Adjust 45-120 Deg Vertical Sector Directional Outdoor Antenna

  • Dimensions: 230x200x80mm
  • Weight: 1.8 KG
  • Connector: N-Female
  • Beam-width: Horz.45-120 Deg Vert.15-20 Deg
View Details
