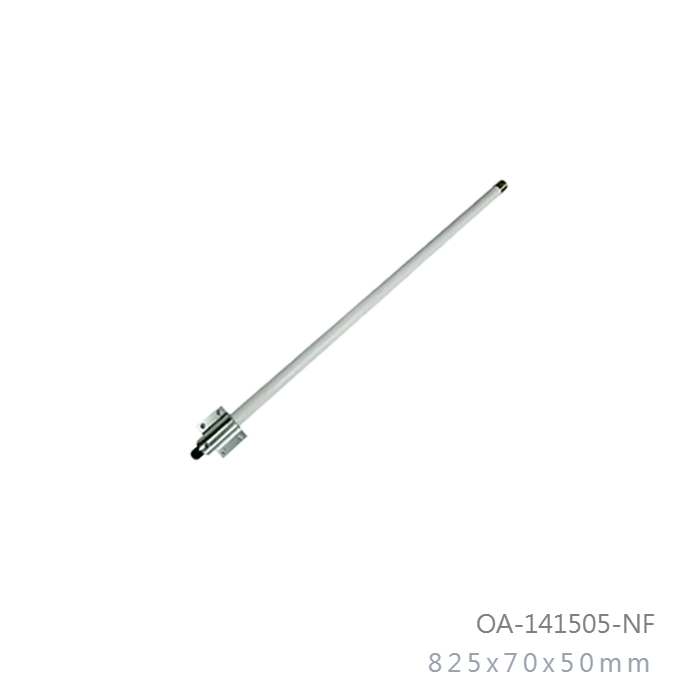

1.45GHz to 1.55GHz 5dBi Outdoor OMNI Directional Antenna1.45GHz to 1.55GHz 5dBi Outdoor OMNI Directional Antenna1.45GHz to 1.55GHz 5dBi Outdoor OMNI Directional Antenna

Model No: OA-141505-NF

Datasheet:Download

  • Dimension : 825x70x50mm
  • Weight : 480g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.18 deg
INQUIRY

Applications:

  • 1450MHz - 1550MHz Band
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

1450MHz - 1550MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

5 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

18 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

825 mm

Diameter (MAX)

70 x 55 mm

Antenna Weight (G.W)

480 g

Accessories (G.W)

70 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Stainless Steel and Aluminum
32 to 45mm Mounting Stainless Steel U-Type Screw

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
