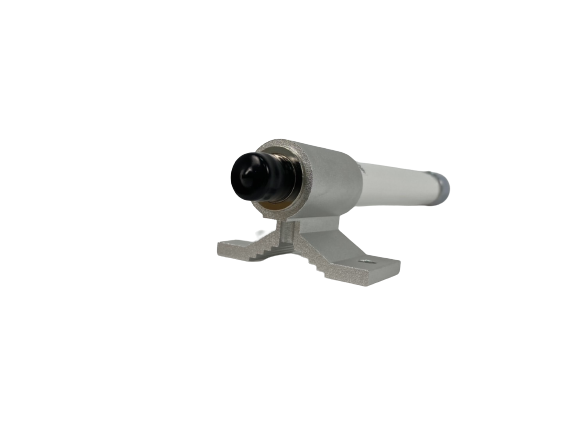

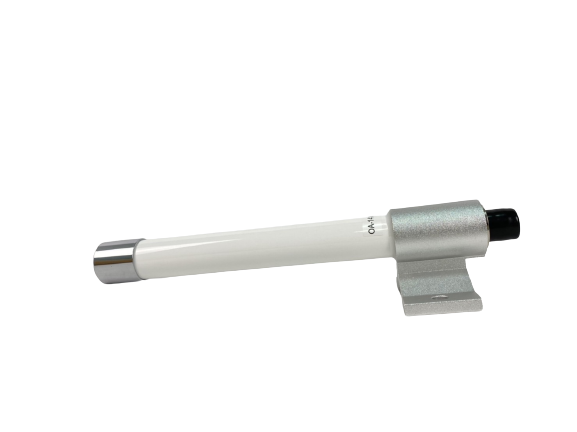

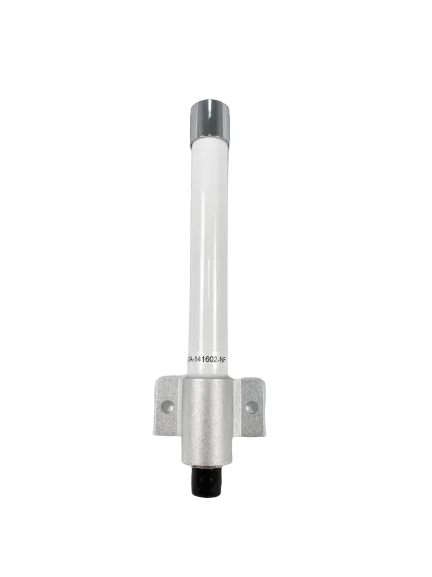

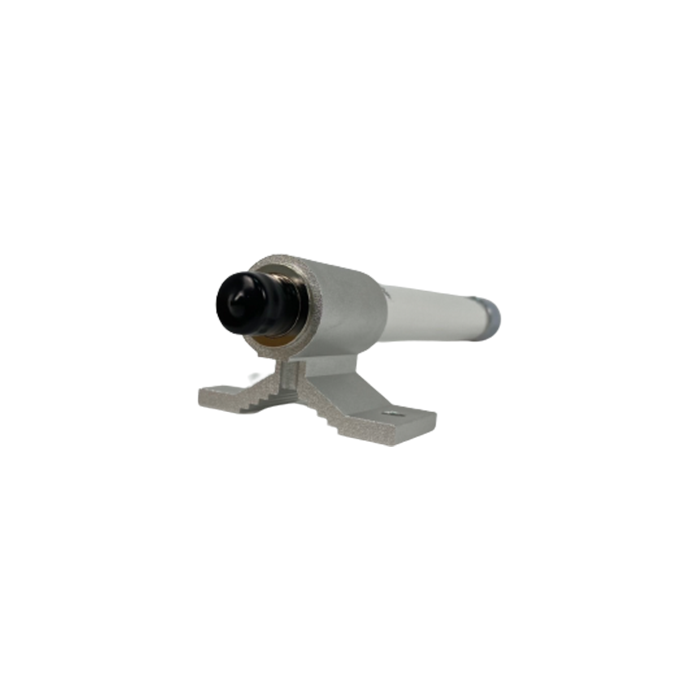

1.4GHz to 1.6GHz 2dbi Omni Directional Outdoor Antenna1.4GHz to 1.6GHz 2dbi Omni Directional Outdoor Antenna1.4GHz to 1.6GHz 2dbi Omni Directional Outdoor Antenna

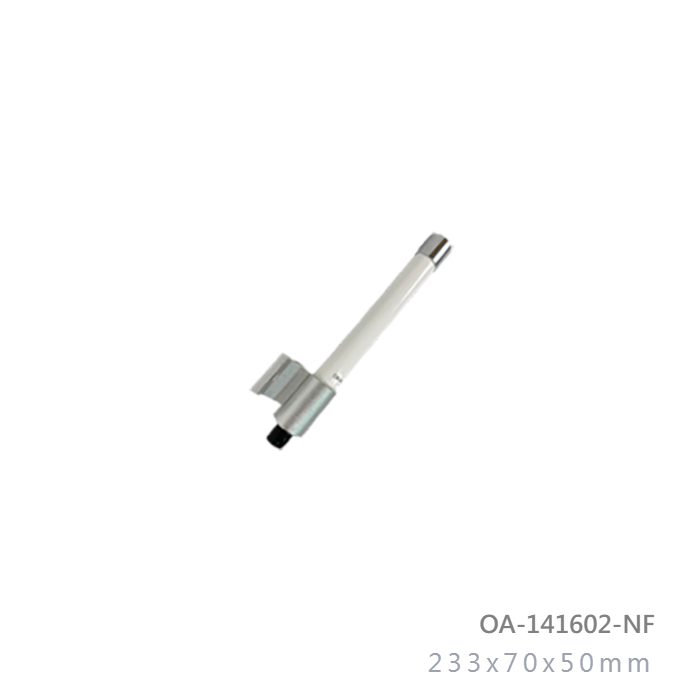

Model No: OA-141602-NF

Datasheet:Download

  • Dimension : 233x70x50mm
  • Weight : 250g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.80 deg
INQUIRY

Applications:

  • 1400MHz - 1600MHz Band
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

1400MHz - 1600MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain(Avg)

2 dBi

Polarization

Vertical or Horizontal

Maximum Power

200 Watts

Vertical Beam-width

80 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

233 mm

Diameter (MAX)

70 x 50mm

Antenna Weight (G.W)

250 g

Accessories (G.W)

35 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Mount Style Pole Mount / Well Mount

Base Material

Aluminum

Mounting Stainless Steel and Aluminum

Wind Survival

Greater than 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS
