1.71GHz to 2.17GHz 13dBi Panel Directional Outdoor Antenna1.71GHz to 2.17GHz 13dBi Panel Directional Outdoor Antenna1.71GHz to 2.17GHz 13dBi Panel Directional Outdoor Antenna

Model No: PA-172113-NF

  • Dimension : L270xW270xD40mm
  • Weight : 0.85 KG
  • Connector : N-Female
  • Beam-with : Horz.32 deg Vert.32 deg
INQUIRY

Applications

  • 1710MHz - 2170MHz Band
  • 13dBi Directional Multipoint application
  • Point to Point Bridge
  • Public Wireless Hotspot
  • RFID
  • Wireless Video Systems

Features

  • Superior performance
  • Lightweight
  • All-weather operation
  • DC Short lightning protection
  • Vertical Installation
  • Including tilt and swivel mast mounting kit
Model Gain (Max) Connector Dimension Weight

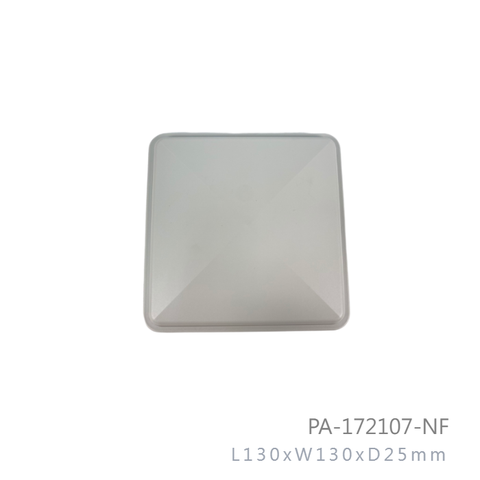

PA-172107-NF 7 dbi N-Female 130x130x25mm 400g
PA-172113-NF 13 dbi N-Female 270x270x40mm 850g

Frequency Range

1710MHz - 2170MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

13 dBi

Polarization

Vertical or Horizontal

Maximum Power

5 Watts

Vertical Beam-with

32 Deg

Horizontal Beam-with

32 Deg

FBR Greater than 25 dB

Impedance

50 Ohm

Antenna Design

4(2x2) Patch Array

Internal Material

FR4 (Taiwan)

Connector

N-Female

Length x Width(MAX)

270 x 270mm

Diameter (MAX)

40mm

Antenna Weight (G.W)

570 g

Accessories (G.W)

280 g

Application Indoor / Outdoor

Radome Material

White ABS

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater then 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
