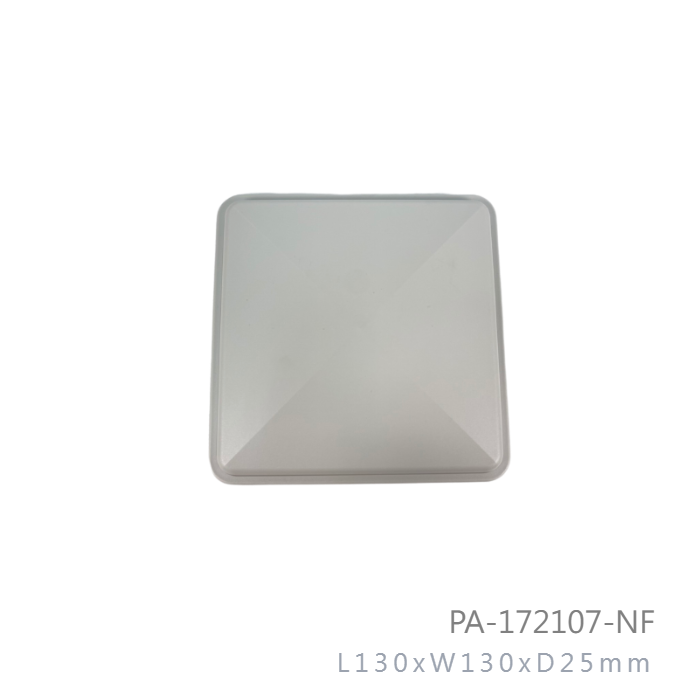

1.71GHz to 2.17GHz 7dBi Panel Directional Outdoor Antenna1.71GHz to 2.17GHz 7dBi Panel Directional Outdoor Antenna1.71GHz to 2.17GHz 7dBi Panel Directional Outdoor Antenna

Model No: PA-172107-NF

  • Dimension : L130xW130xD25mm
  • Weight : 0.4 KG
  • Connector : N-Female
  • Beam-with : Horz.75deg Vert.65deg
INQUIRY

Applications

  • 1.71GHz to 2.17GHz 7dBi Panel Directional Outdoor Antenna
  • 7dBi Directional Multipoint application
  • Point to Point Bridge
  • Public Wireless Hotspot
  • RFID
  • Wireless Video Systems

Features

  • Superior performance
  • Lightweight
  • All-weather operation
  • DC Short lightning protection
  • Vertical Installation
  • Including tilt and swivel mast mounting kit
ModelGain (Max)ConnectorDimensionWeight
PA-172107-NF7 dbiN-Female130x130x25mm400g
PA-172113-NF13 dbiN-Female270x270x40mm850g

Frequency Range

1710MHz - 2170MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

RadiationDirectional

Gain

7 dBi

Polarization

Vertical or Horizontal

Maximum Power

5 Watts

Vertical Beam-with

65 Deg

Horizontal Beam-with

75 Deg

FBRGreater than 18 dB

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4(Taiwan)

Connector

N-Female

Length x Width(MAX)

130 x 130mm

Diameter (MAX)

25mm

Antenna Weight (G.W)

200 g

Accessories (G.W)

200 g

ApplicationIndoor / Outdoor

Radome Material

White ABS

Mount StylePole Mount / Well Mount

Parts Material

Aluminum

MountingStainless Steel
Mount Adjustment0-30deg

Wind Survival

Greater then 150MPH

Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
