Millimeter Wave Solutions

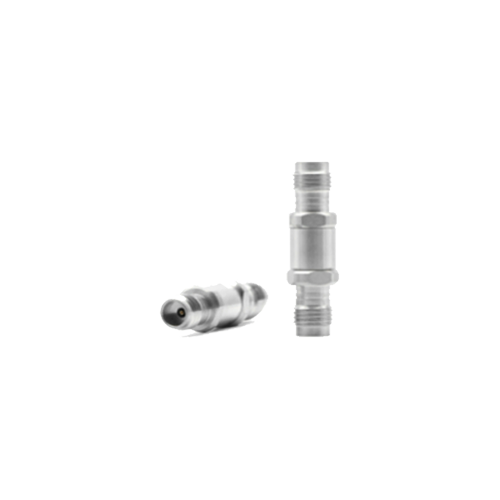

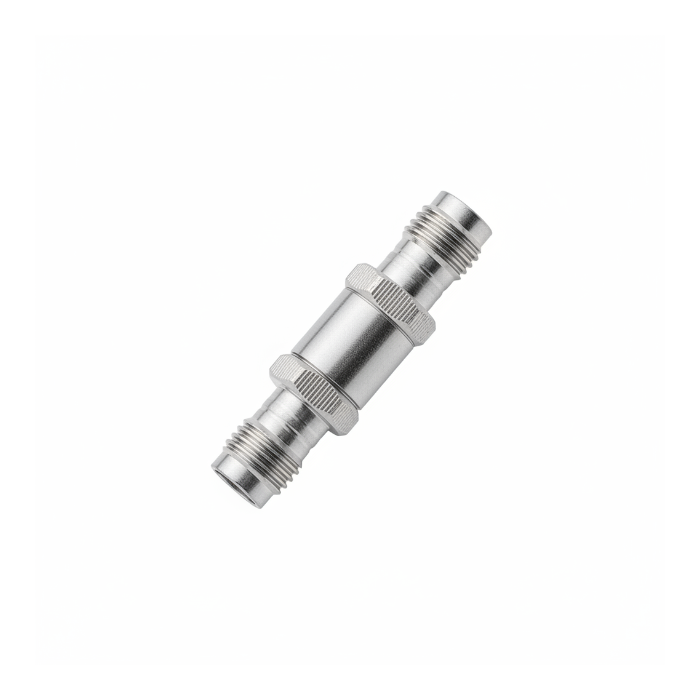

DC to 67GHz 1.85mm Female to 1.85mm Female High-Precision Adapter
Professional grade millimeter-wave adapter designed for extreme high-frequency applications up to 67GHz. Engineered for superior signal integrity and precision measurement in laboratory and industrial environments.
Electrical Specifications
| Frequency Range | DC ～ 67 GHz |
| V.S.W.R | ≤ 1.30 : 1 |
| Impedance | 50 Ω |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical Specifications

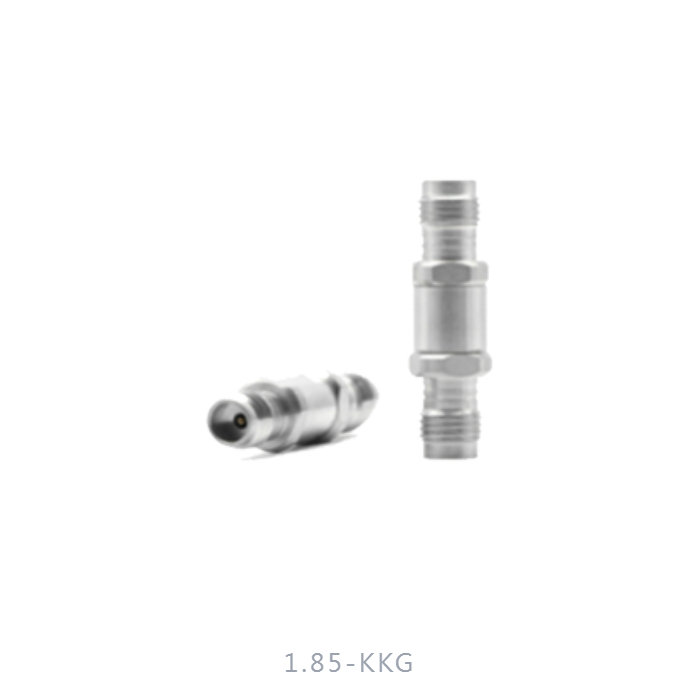

| Model Name | 1.85-KKG |
| Connector Interface | 1.85mm Female to 1.85mm Female |
| Durability | 500 Cycles |
| Temperature Range | -55℃ ～ +165℃ |
Tactical Engineering Features
Extreme Frequency Coverage
Supports a wide operating bandwidth from DC up to 67GHz, making it ideal for V-band and E-band millimeter-wave testing.
Superior Signal Integrity
Featuring low VSWR (≤1.30:1) and high insulation resistance to ensure minimal signal loss and maximum precision in RF measurements.
Rugged Lab-Grade Reliability
Built for long-term use with 500-cycle durability and a wide operating temperature range, suitable for mission-critical environmental testing.
