1.85mm Female to Female Bulkhead Adapter

Model No: 1.85-KKYG

Made in Taiwan

Freq. Range:	DC - 67 GHz
Connector:	1.85mm Bulkhead F-F
VSWR:	≤ 1.30 : 1
Durability:	500 Cycles

📄 FULL DATASHEET

Quantity:

INQUIRY

Descriptions

V-Band Precision Millimeter-Wave Solutions

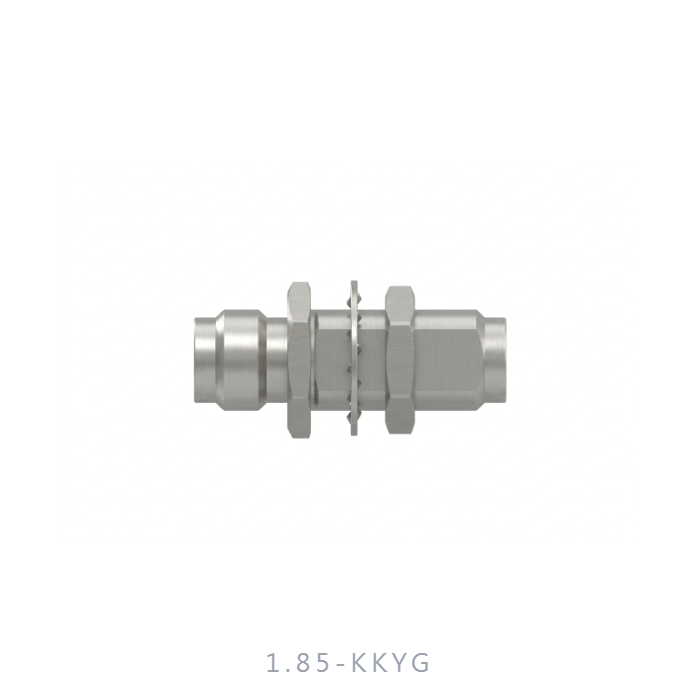

1.85mm Female to 1.85mm Female Precision Bulkhead Adapter (1.85-KKYG)

Ultra-high frequency precision bulkhead adapter engineered for V-band and millimeter-wave applications. Delivering superior mechanical stability and signal performance up to 67 GHz.

Electrical Specifications

Frequency Range	DC – 67 GHz
V.S.W.R (MAX)	≤ 1.30 : 1
Impedance	50 Ω
Insulation Resistance	≥ 5000 MΩ
Dielectric Withstand Voltage	1000 V

Mechanical Specifications

Model Name	1.85-KKYG
Connector Interface	1.85mm Female to 1.85mm Female (Bulkhead)
Durability	500 Cycles
Temperature Range	-55℃ ～ +165℃

Tactical Engineering Features

Millimeter-Wave Precision

Expertly optimized for frequencies up to 67 GHz, ensuring low reflection loss and high signal integrity for 5G/6G research and high-speed data transmission.

Bulkhead Panel Integration

Precision-machined bulkhead configuration enables secure panel-mount installation through enclosures, providing a reliable external interface for V-band systems.

Exceptional Environmental Build

Engineered to operate with peak stability across a wide thermal span (-55℃ to +165℃), suitable for aerospace, defense, and high-stress laboratory testing.

Mission-Critical Reliability

Industrial-grade construction with 500-cycle durability and 5000MΩ insulation resistance, meeting the rigorous standards of professional measurement chains.
