Descriptions

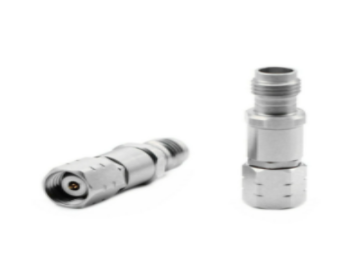

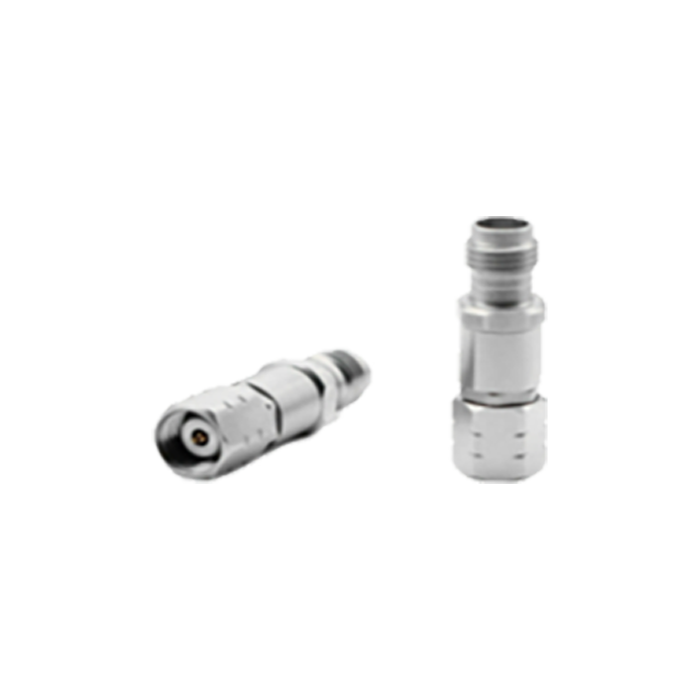

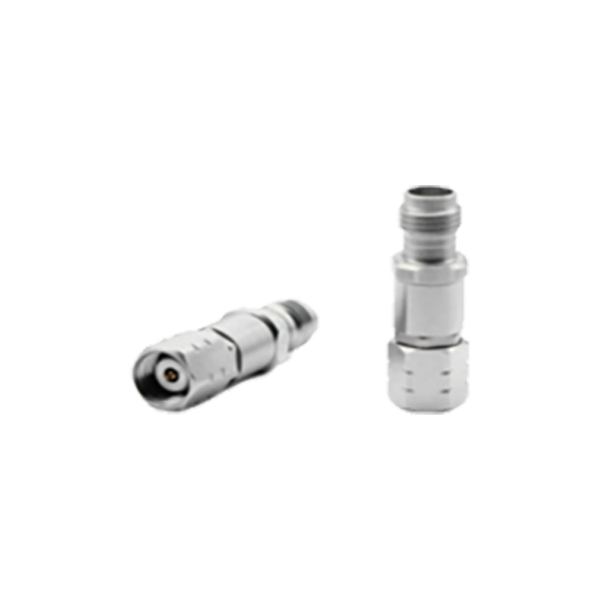

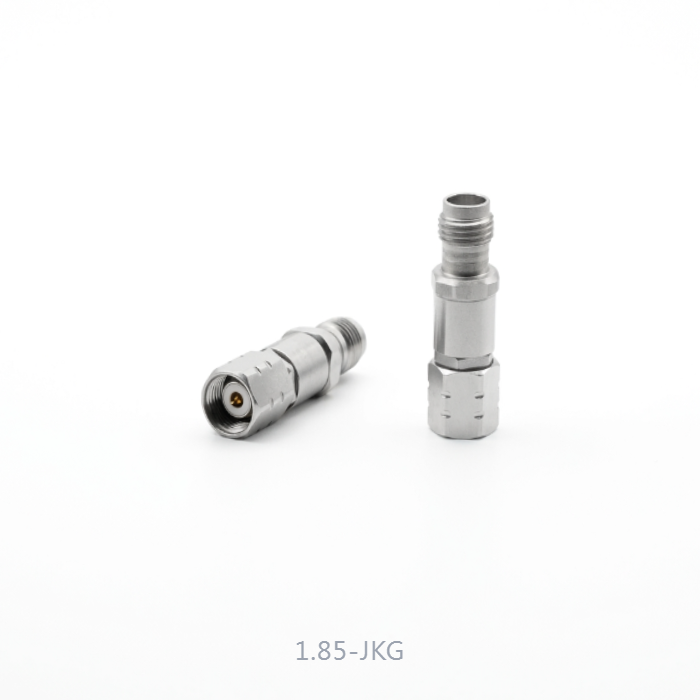

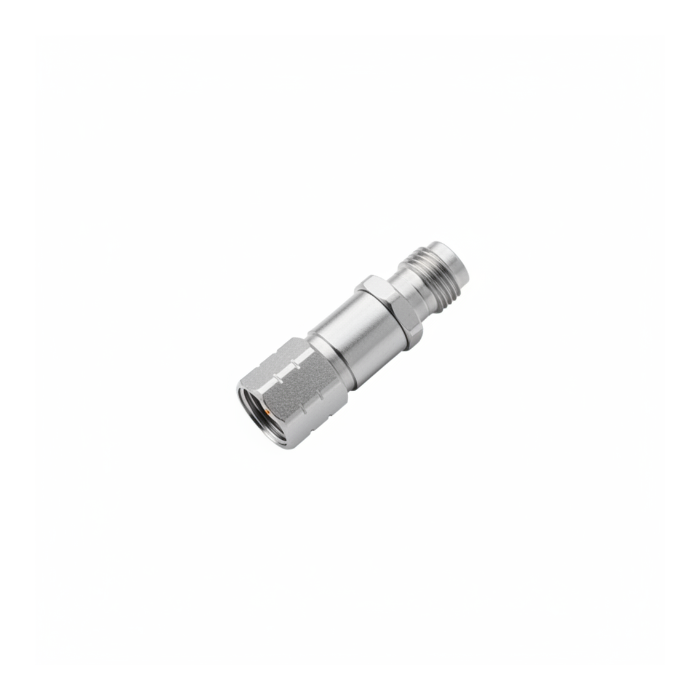

1.85mm Precision Adapter
Model: 1.85-JKG | DC - 67 GHz | Male to Female
The 1.85-JKG is a high-performance coaxial adapter designed for ultra-high frequency millimeter-wave signal transition. Supporting an expansive range up to 67 GHz, it ensures minimal signal loss and reflection with an industry-leading VSWR profile. This adapter is a critical component for 5G/6G research, satellite communication, and professional laboratory testing where Signal Integrity must be maintained across extreme environmental conditions.
Core Electrical Specifications
| Frequency Range | DC to 67 GHz |
| V.S.W.R | ≤ 1.30 : 1 |
| Impedance | 50 Ohm |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical & Environmental Parameters
| Connector Interface | 1.85mm Male to 1.85mm Female |
| Durability | 500 Mating Cycles |
| Operating Temperature | -55°C to +165°C |
| Body Material | Passivated Stainless Steel |
| Manufacturing Origin | Taiwan |
Key Tactical & Lab Features
V-Band Precision
Ensures ultra-low VSWR of ≤ 1.30 across the entire 67 GHz spectrum, providing reliable measurements for millimeter-wave and high-speed data testing.
Extreme Thermal Stability
Specifically engineered to operate between -55°C and +165°C, making it suitable for aerospace, defense, and high-stress environmental chambers.
High Durability Standard
Built to exceed 500 mating cycles without performance degradation, ensuring long-term reliability in professional laboratory environments.
Mechanical Intermateability
The 1.85mm interface is mechanically compatible with 2.4mm connectors, offering flexible integration with existing high-frequency hardware chains.
