Model | Gain (Max) | Connector | Dimension | Weight |
OA-192103-NF | 3 dbi | N-Female | 230x70x55mm | 230g |
OA-192106-NF | 6 dbi | N-Female | 550x70x55mm | 470g |

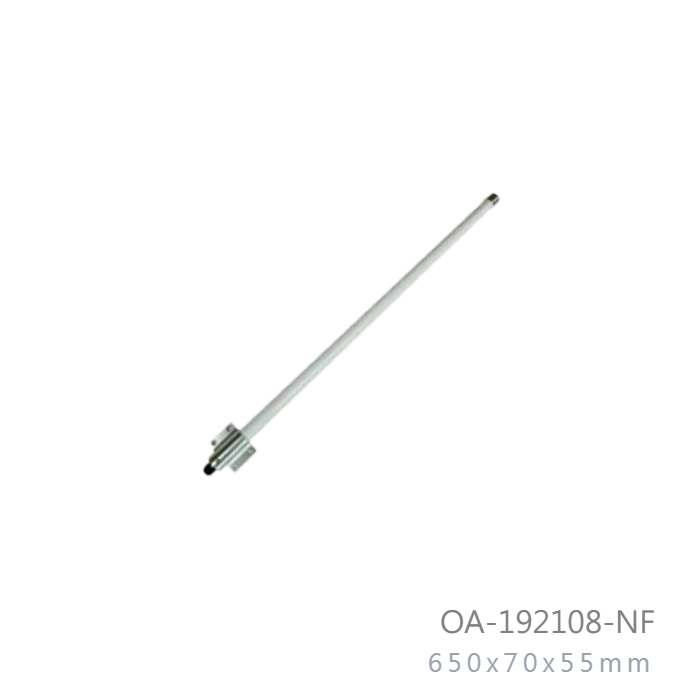

OA-192108-NF | 8 dbi | N-Female | 650x70x55mm | 520g |
OA-192110-NF | 10 dbi | N-Female | 1000x70x55mm | 770g |
OA-192112-NF | 12 dbi | N-Female | 1250x70x55mm | 870g |
OA-192114-NF | 14 dbi | N-Female | 1600x70x55mm | 1270g |
Frequency Range |
1990MHz - 2170MHz |
---|---|
V.S.W.R (MAX) |
1.3 :1 |
Antenna Type |
Collinear |
Radiation | Omni Directional |
Gain (MAX) |
8 dBi |
Polarization |
Vertical |
Maximum Power |
50 Watts |
Vertical Beam-width |
12 Deg |
Horizontal Beam-width |
360 Deg |
Impedance |
50 Ohm |
Antenna Design |
Dipole Array Dipole |
Internal Material |
Copper |
Connector |
N-Female |
Length (MAX) |
650 mm |
---|---|
Diameter (MAX) |
70 x 55mm |
Antenna Weight (G.W) |
450 g |
Accessories (G.W) |
70 g |
Application | Indoor / Outdoor |
Radome Material |
White Fiberglass |
Parts Material |
Aluminum |
Mount Style | Pole Mount / Well Mount |
Pole Mounting | 32mm to 45mm |
Mounting | Stainless Steel |
Wind Survival |
Greater than 150MPH |
Storage Temperature |
-40 to +80 |
Operating Temperature | -40 to +60 |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Safety, Emission and other |
CE, FCC, RoHS |
