1710MHz to 2170MHz Omni Directional Antenna


OA-171803-NF

1.71GHz to 1.88GHz 3dBi Vertical Omni Directional Outdoor Antenna N-Female

  • Gain : 3 dBi
  • Dimension : 250x70x55mm
  • Weight : 270g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.67 deg
View Details
OA-171806-NF

1.71GHz-1.88GHz 6dBi Vertical Omni Directional Outdoor Antenna N-Female

  • Gain : 6 dBi
  • Dimension : 600x70x55mm
  • Weight : 470g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.18 deg
View Details
OA-171808-NF

1.71GHz to 1.88GHz 8dBi Vertical Omni Directional Outdoor Antenna

  • Gain : 8 dBi
  • Dimension : 750x70x55mm
  • Weight : 620g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.13 deg
View Details
OA-171810-NF

1.71GHz to 1.88GHz 10dBi Vertical Omni Directional Outdoor Antenna

  • Gain : 10 dBi
  • Dimension : 1200x70x55mm
  • Weight : 770g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.10 deg
View Details
OA-171812-NF

1.71GHz to 1.88GHz 12dBi Vertical Omni Directional Outdoor Antenna

  • Gain : 12 dBi
  • Dimension : 1650x70x55mm
  • Weight : 1230g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.7 deg
View Details
OA-172110-NF

1710MHz to 2170MHz 10dBi Vertical Broadband Omni Directional Outdoor Antenna N-Female

  • Gain : 10 dBi
  • Dimension : 1200x70x55mm
  • Weight : 850g
  • Connector : N-Female
  • Beam-with : Horz.360 deg Vert.10 deg
View Details
OA-172111-NF

1710MHz to 2170MHz 11dBi Vertical Broadband Omni Directional Outdoor Antenna N-Female

  • Gain : 11 dBi
  • Dimension : 1500x70x55mm
  • Weight : 1300g
  • Connector : N-Female
  • Beam-with : Horz.360 deg Vert.7 deg
View Details
OA-172112-NF

1710MHz to 2170MHz 12dBi Vertical Broadband Omni Directional Outdoor Antenna N-Female

  • Gain : 12 dBi
  • Dimension : 1650x70x55mm
  • Weight : 1450g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.7 deg
View Details
OA-181903-NF

1.85GHz to 1.99GHz 3dBi Vertical Omni Directional Outdoor Antenna N-Female

  • Gain : 3 dBi
  • Dimension : 240x70x55mm
  • Weight : 260g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.67 deg
View Details

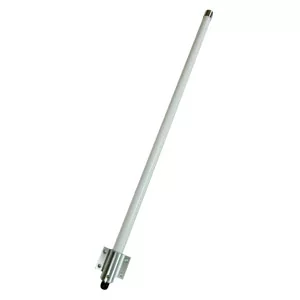

OA-181906-NF

1.85GHz to 1.99GHz 6dBi Vertical Omni Directional Outdoor Antenna N-Female

  • Gain : 6 dBi
  • Dimension : 570x70x55mm
  • Weight : 500g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.18 deg
View Details
OA-181908-NF

1.85GHz to 1.99GHz 8dBi Vertical Omni Directional Outdoor Antenna

  • Gain : 8 dBi
  • Dimension : 750x70x55mm
  • Weight : 670g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.12 deg
View Details

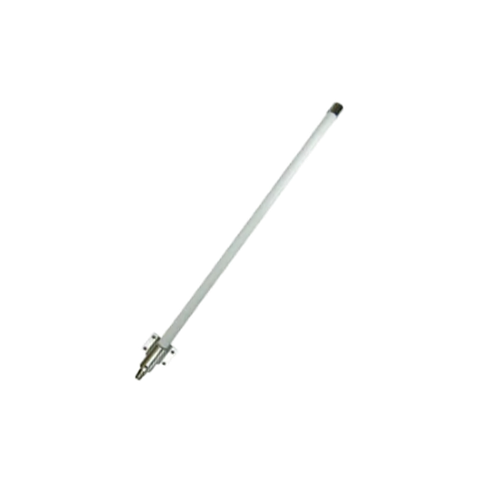

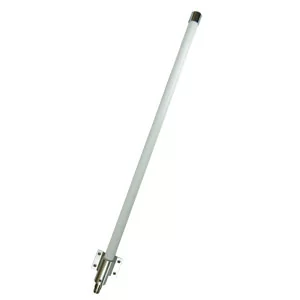

OA-181910-NF

1.85GHz to 1.99GHz 10dBi Vertical Omni Directional Outdoor Antenna

  • Gain : 10 dBi
  • Dimension : 1200x70x55mm
  • Weight : 770g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.9 deg
View Details
