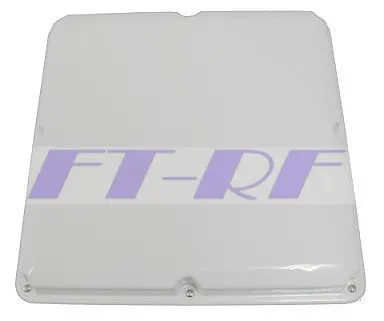

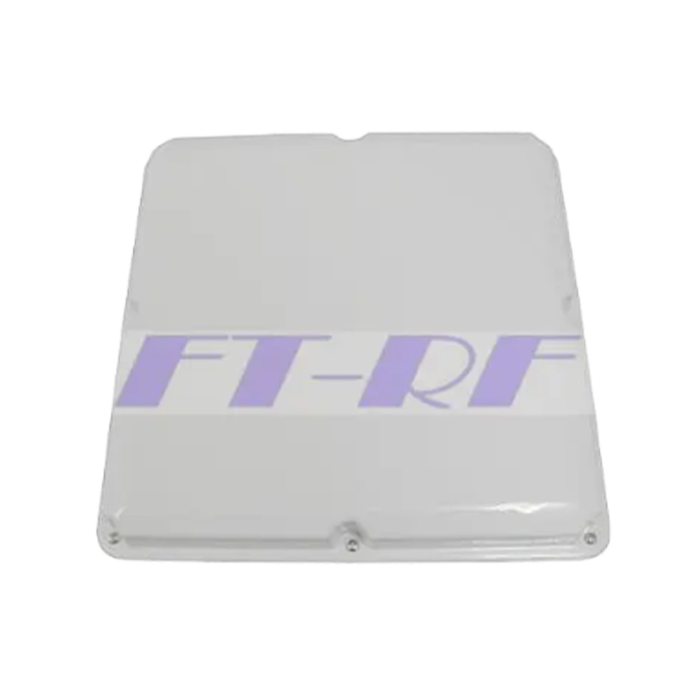

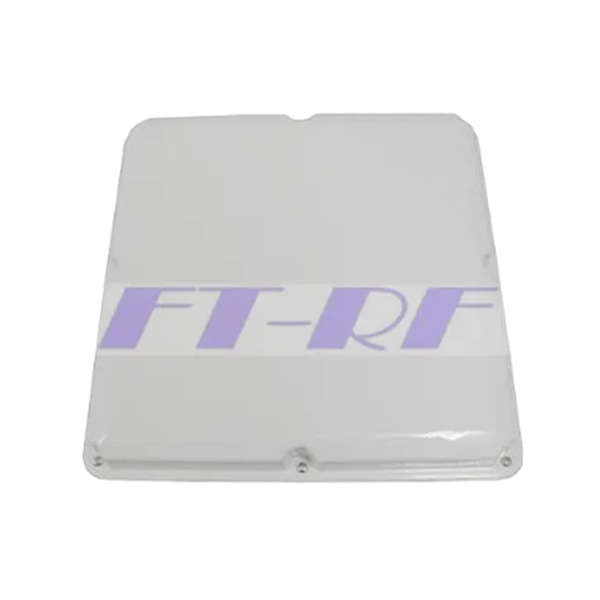

1080MHz to 1200MHz 9dBi Vertical or Horizontal Panel Directional Antenna N-Female

Model No: PA-111209-NF

Datasheet:Download

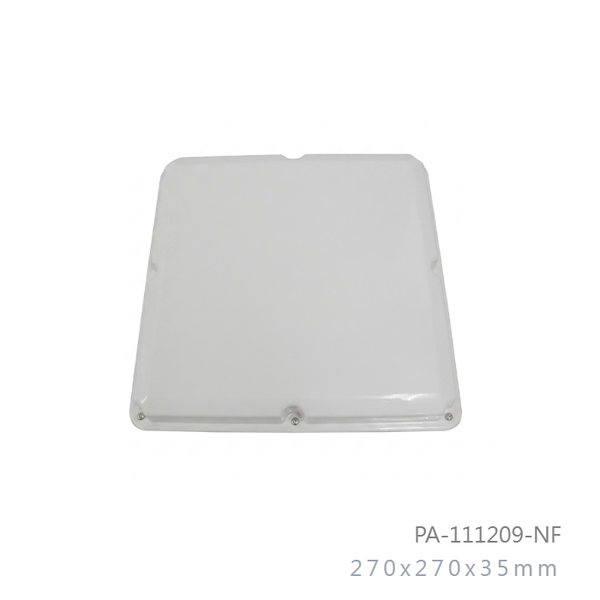

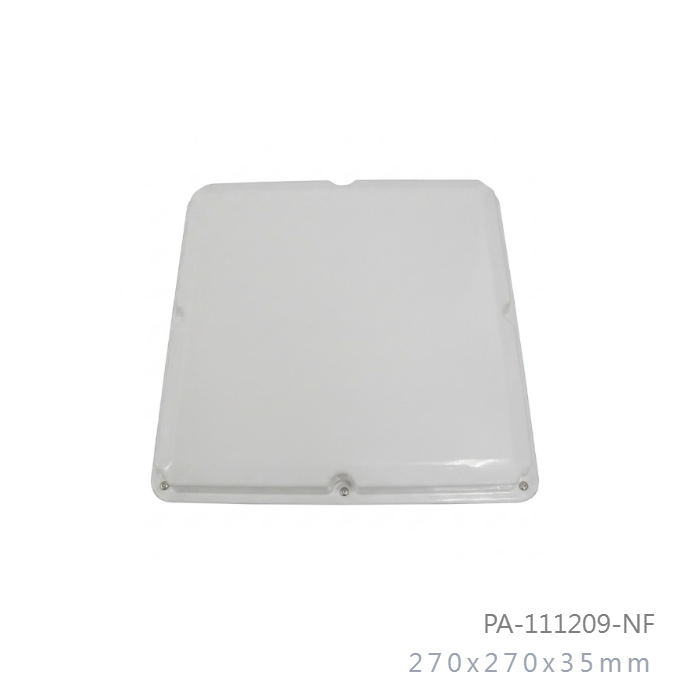

  • Dimension : 270x270x35mm
  • Weight : 580g
  • Connector : N-Female
  • -3dB Beamwidth : Horz.68 deg Vert.65 deg
INQUIRY

Applications:

  • 1080MHz - 1200MHz Band
  • Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

1080MHz - 1200MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain (Avg)

9 dBi

Polarization

Vertical or Horizontal

Maximum Power

15 Watts

Vertical Beamwidth

65 Deg

Horizontal Beamwidth

68 Deg

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4(Taiwan)

Implant resistance DC Ground

Connector

N-Female

Length x Width(MAX)

275 x 275mm

Diameter (MAX)

35mm

Antenna Weight (G.W)

580 g

Accessories (G.W)

250 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment +- 28deg

Wind Survival

Greater than 150MPH

Storage Temperature -20 to +80
Operating Temperature -20 to +60
Operating Humidity 10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety, Emission and other

RoHS
