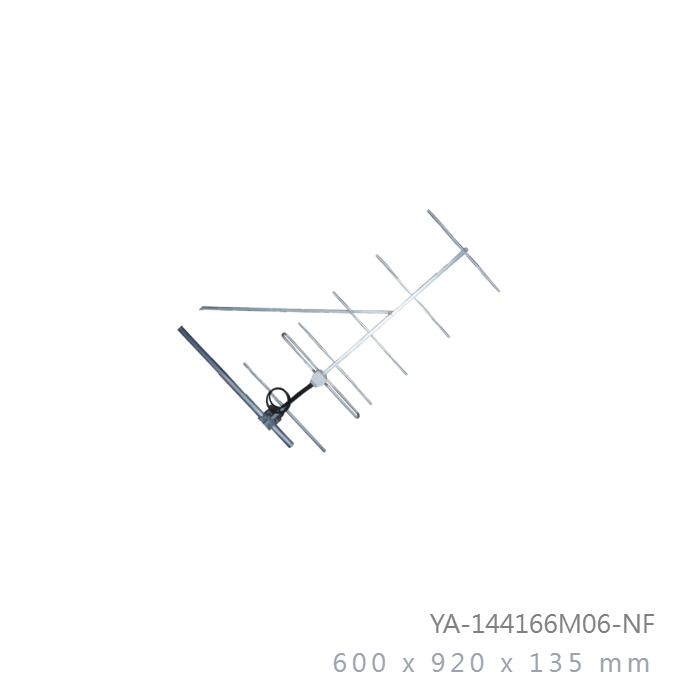

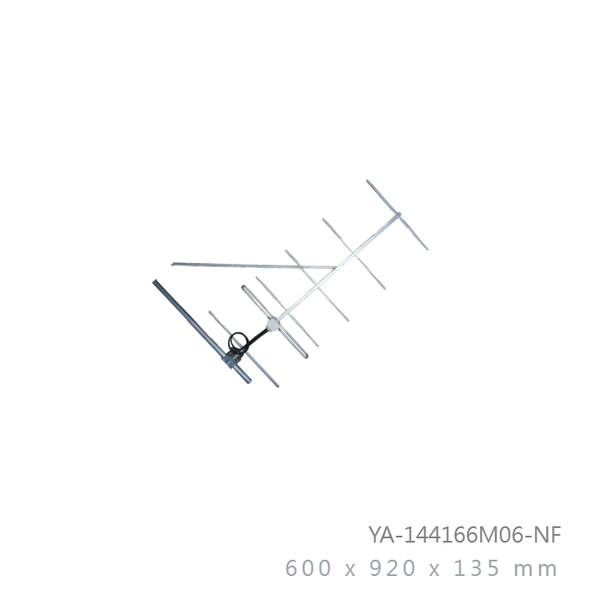

144 MHz to 162 MHz 6dBi Yagi Directional Outdoor Antenna144 MHz to 162 MHz 6dBi Yagi Directional Outdoor Antenna144 MHz to 162 MHz 6dBi Yagi Directional Outdoor Antenna

Model No: YA-144166M06-NF

  • Dimension: 600mmx920x135mm
  • Weight: 1300g
  • Connector: N-Female
  • Beam-width: Horz.100 deg Vert.60 deg
INQUIRY

Frequency Range

144MHz to 166MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Yagi

Radiation Yagi Directional

Gain (MAX)

6 dBi

Polarization

Vertical or Horizontal

Maximum Power

500 Watts

Vertical Beamwidth

60 Deg

Horizontal Beamwidth

100 Deg

Impedance

50 Ohm

Antenna Design

Folded Dipole Balun Yagi

Internal Material

FT400 Cable

Connector

N-Female

Length

600mm

Diameter

920x 135mm

Antenna Weight

800 g

Accessories

500 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style 1.5~3" Pole Mount
Mounting Stainless Steel

Wind Survival

Greater than 120MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
