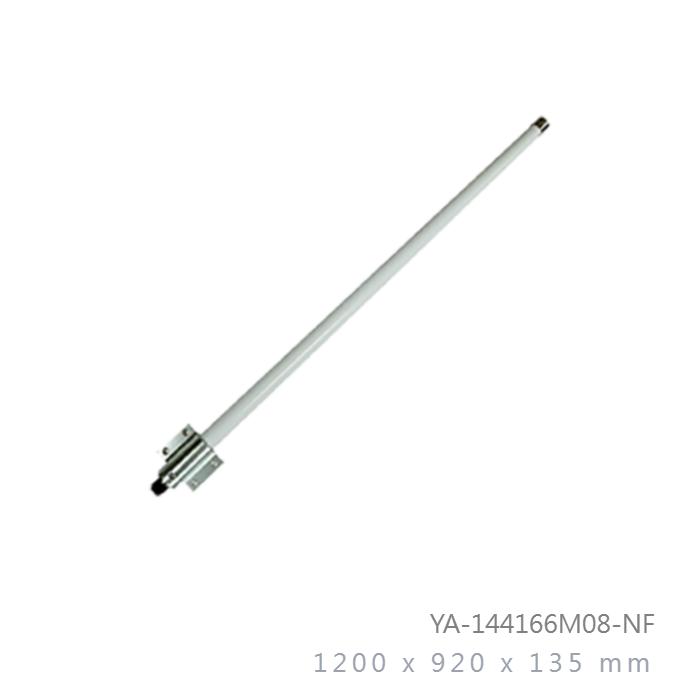

144 MHz to 162 MHz 8dBi Yagi Directional Outdoor Antenna144 MHz to 162 MHz 8dBi Yagi Directional Outdoor Antenna144 MHz to 162 MHz 8dBi Yagi Directional Outdoor Antenna

Model No: YA-144166M08-NF

  • Dimension: 1200mmx920x135mm
  • Weight: 2400g
  • Connector: N-Female
  • Beam-width: Horz.62 deg Vert.64 deg
INQUIRY

Frequency Range

144MHz to 166MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Yagi Antenna

RadiationYagi Directional

Gain (MAX)

8 dBi

Polarization

Vertical or Horizontal

Maximum Power

500 Watts

Vertical Beam-width

64 Deg

Horizontal Beam-width

62 Deg

Impedance

50 Ohm

Antenna Design

Folded Dipole Balun Yagi

Internal Material

FT400 Cable

Connector

N-Female

Length

1200mm

Diameter

920x 135mm

Antenna Weight

1800 g

Accessories

600 g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style1.5~3" Pole Mount
MountingStainless Steel

Wind Survival

Greater than 120MPH

Storage Temperature

-40 to +80

Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
