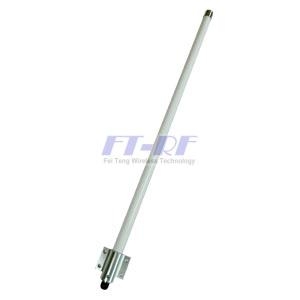

152 MHz to 158 MHz 5dBi Omni Antenna152 MHz to 158 MHz 5dBi Omni Antenna152 MHz to 158 MHz 5dBi Omni Antenna

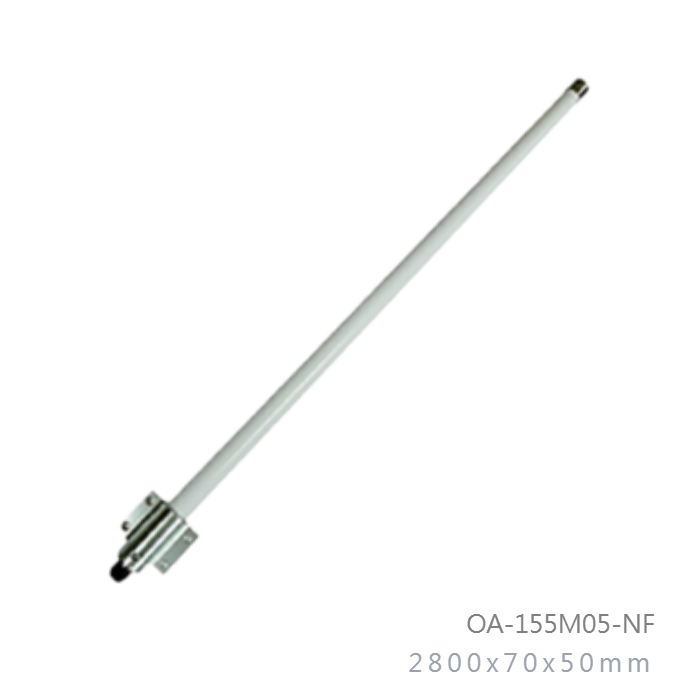

Model No: OA-155M05-NF

  • Dimension: 2800x70x50mm
  • Weight: 3Kg
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.38 deg
INQUIRY

Applications:

  • 152 MHz to 158 MHz 5dBi Omni Antenna
  • Omni Directional applications
  • Public Wireless Hotspot

Features:

  • Superior performance
  • DC Short lightning protection
  • Ensuring reliable operation in a harsh environment.
  • RoHS Compliant

Frequency Range

152MHz to 158MHz

V.S.W.R (MAX)

2.0 :1

158MHz to 162MHz 1.5:1

Antenna Type

Collinear

RadiationOmni Directional

Gain (MAX)

5 dBi

Polarization

Vertical

Maximum Power

250 Watts

Vertical Beam-width

38 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length

2800mm

Diameter

70 x 55mm

Antenna Weight

3Kg

Accessories

70 g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount StylePole Mount / Wall Mount
MountingStainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing

Safety, Emission and other

 RoHS
