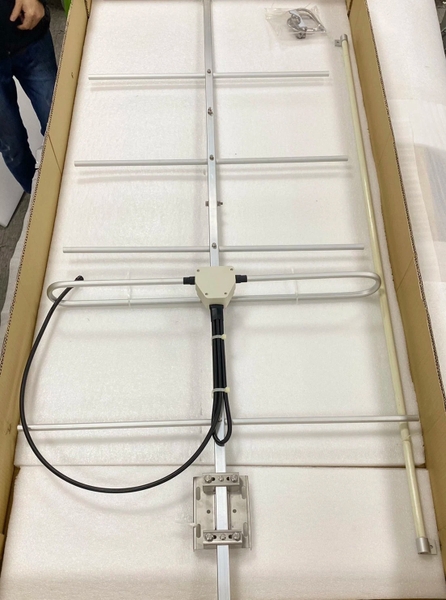

158 MHZ to 178 MHZ 12dBi Yagi Directional Outdoor Antenna158 MHZ to 178 MHZ 12dBi Yagi Directional Outdoor Antenna158 MHZ to 178 MHZ 12dBi Yagi Directional Outdoor Antenna

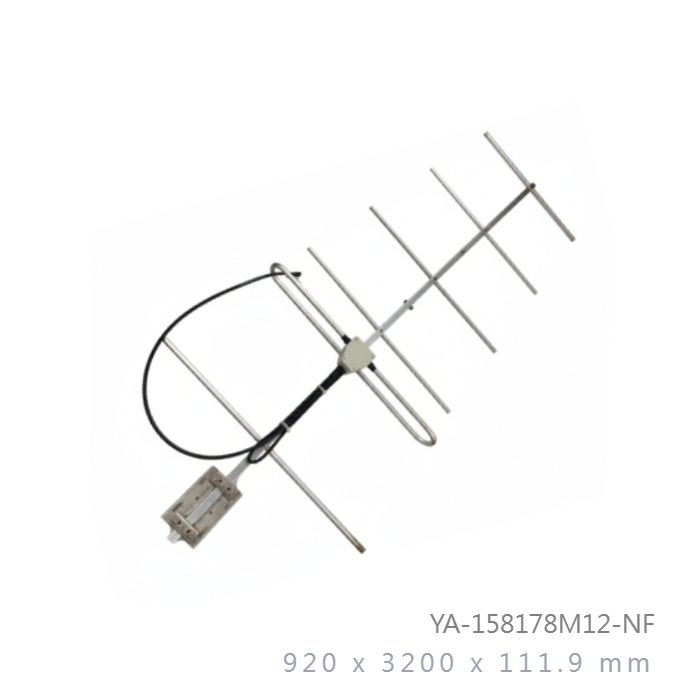

Model No: YA-158178M12-NF

Datasheet:Download

  • Dimension: 920x3200x111.9mm
  • Weight: 5 Kg
  • Connector: N-Female
  • Beam-width: Horz. 49 deg Vert.42 deg

In stock - Same day shipping

INQUIRY

Application

  • 158 MHZ to 178 MHZ Band
  • ​​​​​​​Yagi Directional Outdoor Antenna
  • Public Wireless
  • Wireless Video Systems

Feature

  • Superior performance
  • Lightweight
  • All-weather operation
  • DC Short lightning protection

Electrical Specifications

Frequency Range

902 MHz to 928 MHz

V.S.W.R (MAX)

2.0:1

Antenna Type

Collinear

Radiation

Yagi Directional

Gain (MAX)

12 dBi

Polarization

Vertical or Horizontal

Maximum Power

Watts

Horizontal Beamwidth

49 Deg

Vertical Beamwidth

42 Deg

FBR

19 dB

Impedance

50 Ohm

Antenna Design

Patch

Internal Material

PCB

Connector

N-Female

Mechanical Specifications

Dimension (WxLxH)

920x3200x111.9mm

Antenna Weight

5 kg

Application

Indoor / Outdoor

Radom Material

White Fiberglass

Mount Style

Pole Mount / Wall Mount

Mounting

Stainless Steel and Aluminum

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS
