Applications:

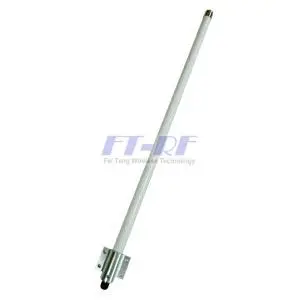

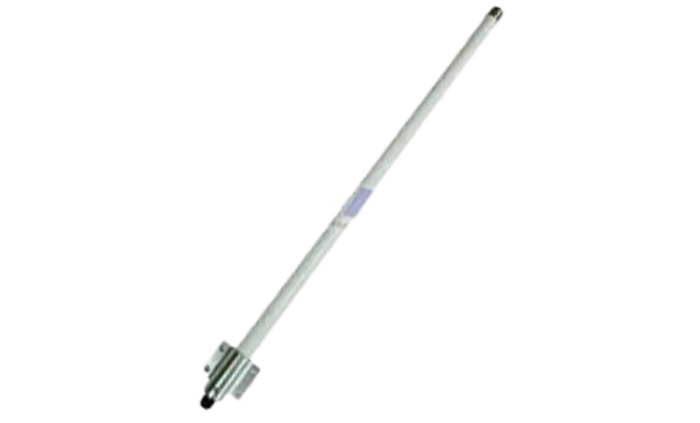

- 165 MHz to 180 MHz 3dbi Omni Antenna N-Female
- Omni Directional applications
- Public Wireless Hotspot
Features:
- Superior performance
- DC Short lightning protection
- Ensuring reliable operation in a harsh environment.
- RoHS Compliant
|
Frequency Range |
165MHz to 180MHz |
|---|---|
|
V.S.W.R (MAX) |
2.7 :1 168MHz to 174MHz 1.3:1 |
|
Antenna Type |
Collinear |
| Radiation | Omni Directional |
|
Gain (MAX) |
3 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
250 Watts |
|
Vertical Beam-width |
65 Deg |
|
Horizontal Beam-width |
360 Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
1/4 Wavelength Dipole |
|
Internal Material |
Copper |
|
Connector |
N-Female |
|

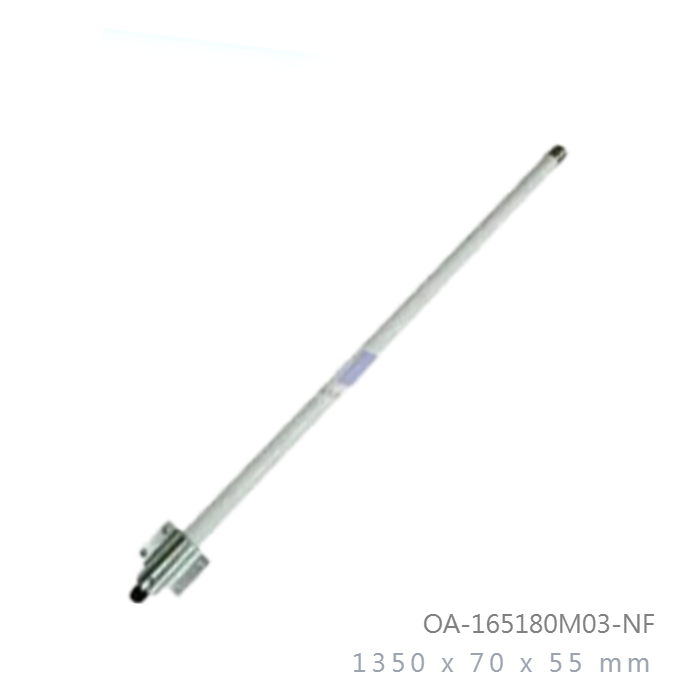

Length |
1350mm |
|---|---|
|
Diameter |
70 x 55mm |
|
Antenna Weight |
830 g |
|
Accessories |
70 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White Fiberglass |
|
Parts Material |
Aluminum |
| Mount Style | Pole Mount / Wall Mount |
| Mounting | Stainless Steel |
|
Wind Survival |
Greater than 150MPH |
|
Storage Temperature |
-40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
|
Safety, Emission and other |
CE, FCC, RoHS |
