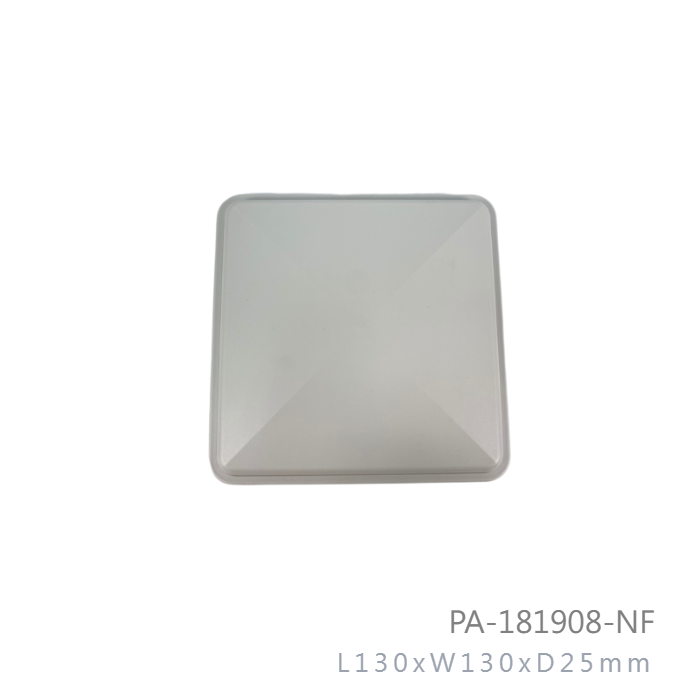

1850MHz to 1990MHz 8dbi Panel Directional Outdoor Antenna1850MHz to 1990MHz 8dbi Panel Directional Outdoor Antenna1850MHz to 1990MHz 8dbi Panel Directional Outdoor Antenna

Model No: PA-181908-NF

  • Dimension : L130xW130xD25mm
  • Weight : 0.4 KG
  • Connector : N-Female
  • Beam-width : Horz.60 deg Vert.46 deg
INQUIRY

Applications

  • 1850MHz to 1990MHz 8dbi Panel Antenna
  • 8dBi Directional Multipoint application
  • Point to Point Bridge
  • Public Wireless Hotspot
  • RFID
  • Wireless Video Systems

Features

  • Superior performance
  • Lightweight
  • All-weather operation
  • DC Short lightning protection
  • Vertical Installation
  • Including tilt and swivel mast mounting kit
ModelGain (Max)ConnectorDimensionWeight
PA-181908-NF8 dbiN-Female130x130x25mm400g
PA-181914-NF14 dbiN-Female275x275x45mm800g
PA-181916-NF16 dbiN-Female375x375x45mm1200g

Frequency Range

1850MHz - 1990MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

RadiationDirectional

Gain (Avg)

8 dBi

Polarization

Vertical or Horizontal

Maximum Power

5 Watts

Vertical Beam-width

46 Deg

Horizontal Beam-width

60 Deg

F /BGreater than 15 dB

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4(Taiwan)

Connector

N-Female

Length x Width(MAX)

130 x 130mm

Diameter (MAX)

25mm

Antenna Weight (G.W)

200 g

Accessories (G.W)

200 g

ApplicationIndoor / Outdoor

Radome Material

White ABS

Mount StylePole Mount / Well Mount

Parts Material

Aluminum

MountingStainless Steel
Mount Adjustment0-30deg

Wind Survival

Greater than 150MPH

Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
