Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications
- 1950MHz - 2050MHz Band
- 8dBi Directional Multipoint application
- Point to Point Bridge
- Public Wireless Hotspot
- RFID
- Wireless Video Systems
Features
- Superior performance
- Lightweight
- All-weather operation
- DC Short lightning protection
- Vertical Installation
- Including tilt and swivel mast mounting kit
| Model | Gain (Max) | Connector | Dimension | Weight |

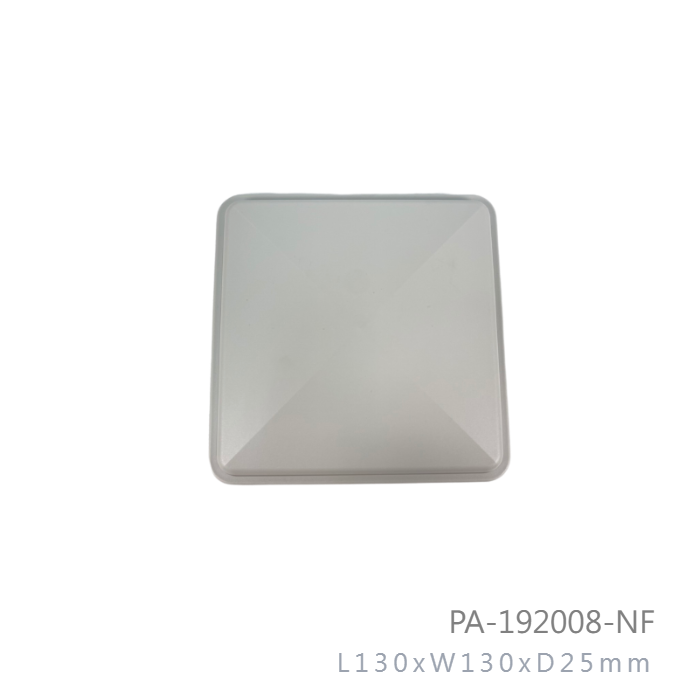

| PA-192008-NF | 8 dbi | N-Female | 130x130x25mm | 400g |
| PA-192013-NF | 13 dbi | N-Female | 230x230x25mm | 750g |
| PA-192017-NF | 17 dbi | N-Female | 375x375x40mm | 1200g |
|
Frequency Range |
1950MHz - 2050MHz |
|---|---|
|
V.S.W.R (MAX) |
1.3 :1 |
|
Antenna Type |
Patch Type |
| Radiation | Directional |
|
Gain (Avg) |
8 dBi |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
5 Watts |
|
Vertical Beam-width |
46 Deg |
|
Horizontal Beam-width |
60 Deg |
| F /B | Greater than 15 dB |
|
Impedance |
50 Ohm |
|
Antenna Design |
One Patch |
|
Internal Material |
FR4(Taiwan) |
|
Connector |
N-Female |
|
Length x Width(MAX) |
130 x 130mm |
|---|---|
|
Diameter (MAX) |
25mm |
|
Antenna Weight (G.W) |
200 g |
|
Accessories (G.W) |
200 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White ABS |
| Mount Style | Pole Mount / Well Mount |
|
Parts Material |
Aluminum |
| Mounting | Stainless Steel |
| Mount Adjustment | 0 - 30 deg |
|
Wind Survival |
Greater than 150MPH |
| Storage Temperature | -20 to +80 |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
CE, FCC, RoHS |
