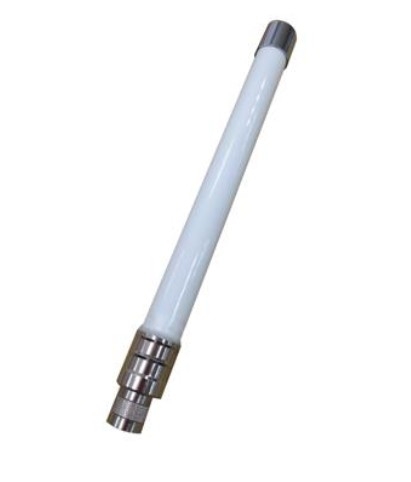

1920MHz to 2170MHz 2dBi Mini Omni Directional Outdoor Antenna (N-Male)1920MHz to 2170MHz 2dBi Mini Omni Directional Outdoor Antenna (N-Male)1920MHz to 2170MHz 2dBi Mini Omni Directional Outdoor Antenna (N-Male)

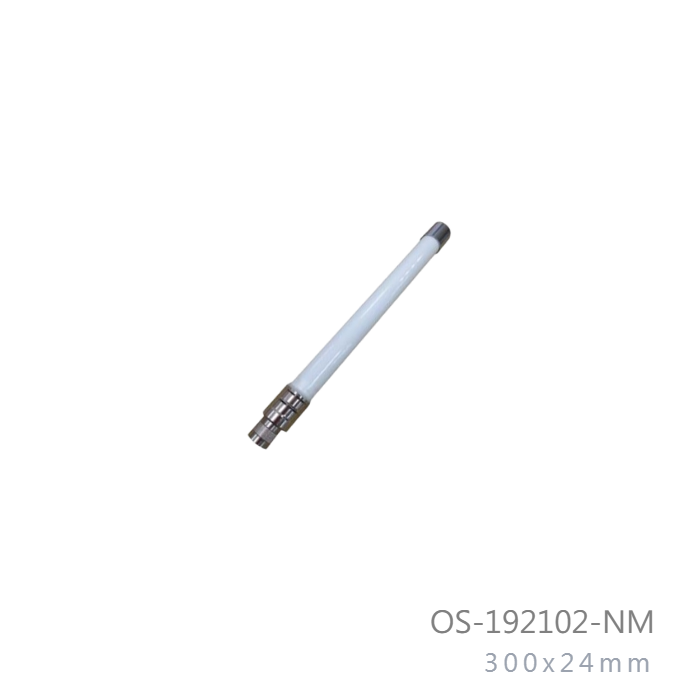

Model No: OS-192102-NM

  • Dimension : 300x24mm
  • Weight : 180g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.72 deg
INQUIRY

Applications:

  • 1920MHz to 2170MHz Band
  • IEEE 802.11b, 11g, 802.11, 802.11n Wireless LAN
  • Directional and multipoint applications
  • Bluetooth
  • Public Wireless Hotspot
  • Wireless Video Systems

Features:

  • Superior performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public hotspot
  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

1920MHz to 2170MHz

V.S.W.R (MAX)

 2.0 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

2 dBi

Polarization

Vertical

Maximum Power

150 Watts

Vertical Beam-width

72 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

 Dipole Array

Internal Material

Copper

Connector

N-Male

Length (MAX)

300mm

Diameter (MAX)

24mm

Antenna Weight (G.W)

180 g

Accessories (G.W)

3 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Well Mount
Mounting Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
