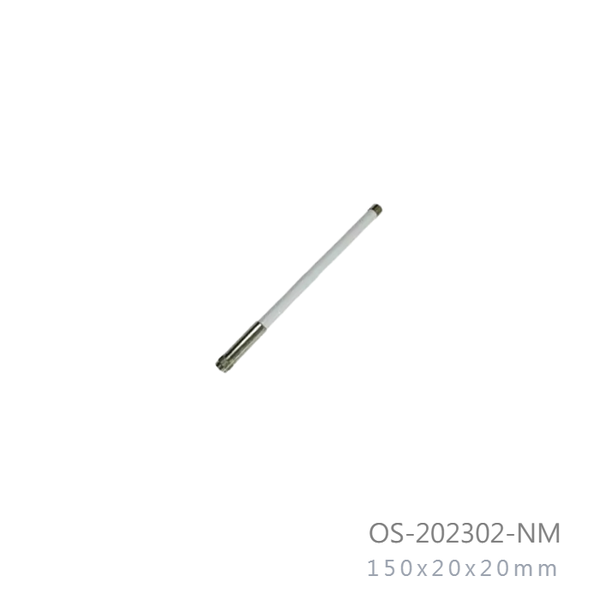

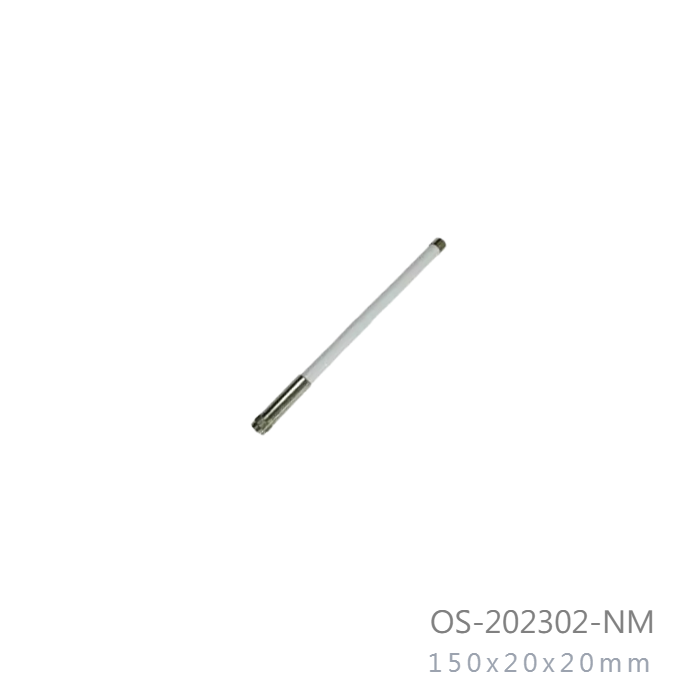

2.0GHz to 2.3GHz 2dBi Outdoor Mini OMNI Directional Antenna2.0GHz to 2.3GHz 2dBi Outdoor Mini OMNI Directional Antenna2.0GHz to 2.3GHz 2dBi Outdoor Mini OMNI Directional Antenna

Model No: OS-202302-NM

  • Dimension : 150x20x20mm
  • Weight : 110g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.48 deg
INQUIRY

Applications:

  • 1990MHz - 2170MHz Band
  • IEEE 802.22 WRAN
  • Point to Point Bridge
  • Multipoint Application
  • Bluetooth
  • Public Wireless Hotspot
  • Wireless Video Systems


Features:

  • Superior performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public hotspots
  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2000MHz - 2300MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

2 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

48 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

1/4 Wavelength Dipole

Internal Material

Copper

Connector

N-Male

Length(MAX)

150mm

Diameter (MAX)

20 x 20mm

Antenna Weight(G.W)

110g

Accessories(G.W) 5g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
