Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
- 2200MHz to 2300MHz Band
- Omni Directional Multipoint applications
- Point to Point Bridge / MMDS / Hotspot
- Public Wireless
- Wireless Video Systems
Features:
- Superior Performance
- Good appearance design
- DC Short lightning protection
- Support is up and down or so to adjust
- Behind and support is made of aluminum
- Outdoor antenna for public
- Including tilt and swivel mast mounting kit
- RoHS Compliant
Frequency Range | 2200MHz - 2300MHz |
|---|---|
V.S.W.R (MAX) | 1.3 :1 |
Antenna Type | Collinear |
| Radiation | Omni Directional |
Gain (MAX) | 8 dBi |
Polarization | Vertical |
Maximum Power | 50 Watts |
Vertical Beam-width | 13 Deg |
Horizontal Beam-width | 360 Deg |
Impedance | 50 Ohm |
Antenna Design | Dipole Array |
Internal Material | Copper |
Connector | N-Female |

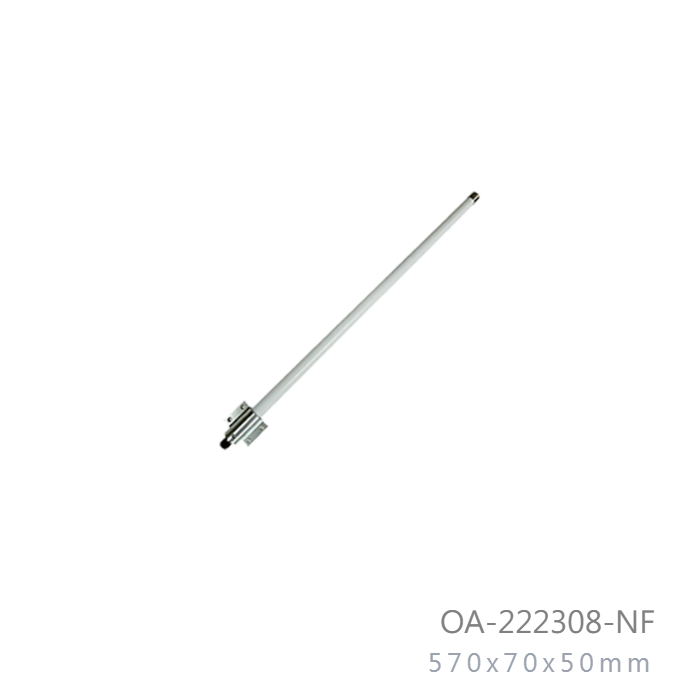

Length | 570mm |
|---|---|
Diameter | 70 x 55mm |
Antenna Weight | 460 g |
Accessories | 70 g |
| Application | Indoor / Outdoor |
Radome Material | White Fiberglass |
Parts Material | Aluminum |
| Mount Style | Pole Mount / Well Mount |
| Mounting | Stainless Steel |
Wind Survival | Greater than 150MPH |
Storage Temperature | -20 to +80 |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10%~80% non-condensing |
| Storage Humidity | 5%~80% non-condensing |
Safety,Emission and other | CE, FCC, RoHS |
