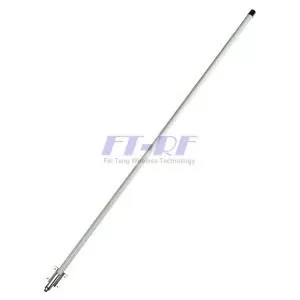

2.2GHz to 2.3GHz 15dBi Outdoor OMNI Directional Antenna2.2GHz to 2.3GHz 15dBi Outdoor OMNI Directional Antenna2.2GHz to 2.3GHz 15dBi Outdoor OMNI Directional Antenna

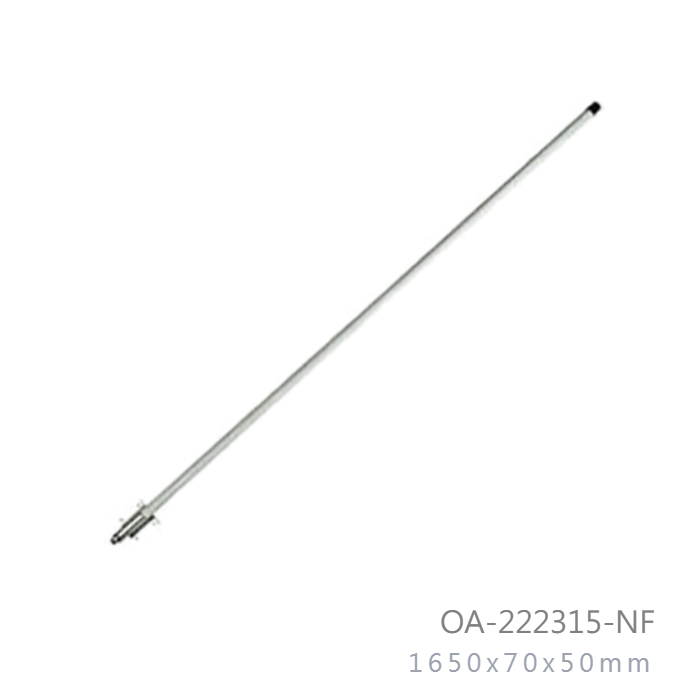

Model No: OA-222315-NF

  • Dimension : 1650x70x50mm
  • Weight : 1270g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.5 deg
INQUIRY

Applications:

  • 2200MHz to 2300MHz Band
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2200MHz - 2300MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Collinear

RadiationOmni Directional

Gain (MAX)

15 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

5 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

1650mm

Diameter (MAX)

70 x 55mm

Antenna Weight (G.W)

1200 g

Accessories (G.W)

70 g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount StylePole Mount / Well Mount
MountingStainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
