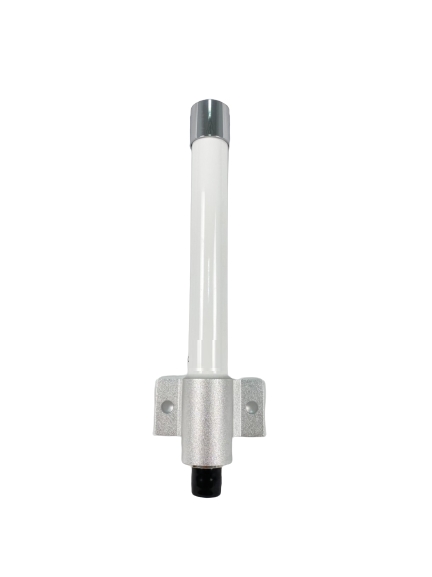

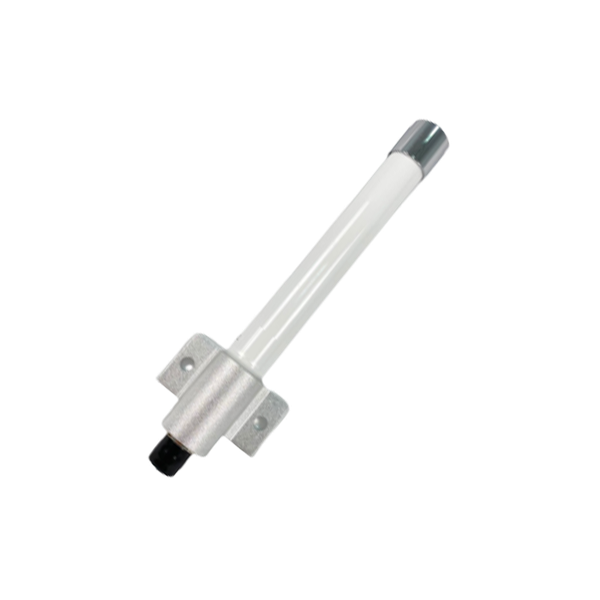

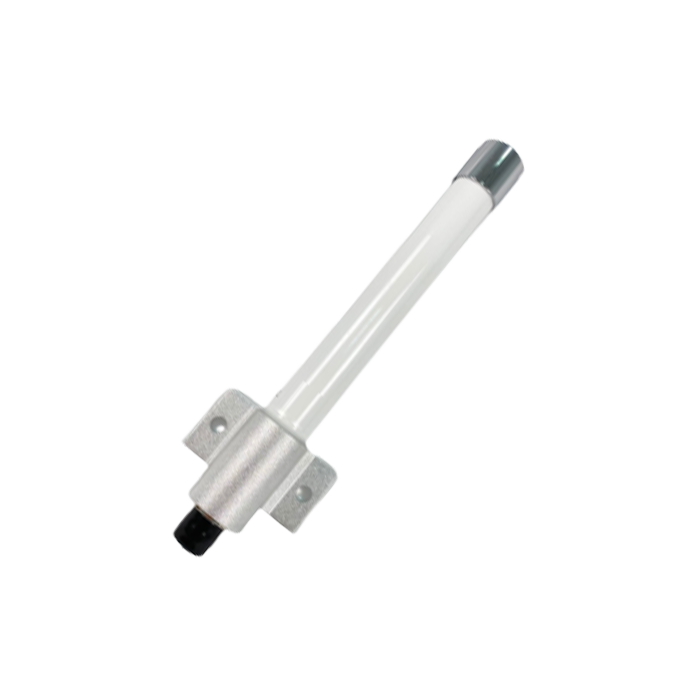

2.2GHz to 2.3GHz 3dBi Outdoor OMNI Directional Antenna2.2GHz to 2.3GHz 3dBi Outdoor OMNI Directional Antenna2.2GHz to 2.3GHz 3dBi Outdoor OMNI Directional Antenna

Model No: OA-222303-NF

Datasheet:Download

  • Dimension : 220x70x50mm
  • Weight : 280g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.72 deg
INQUIRY

Applications:

  • 2200MHz to 2300MHz Band omni directional antenna
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2200MHz - 2300MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Collinear

RadiationOmni Directional

Gain (MAX)

3 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

72 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

1/4 Wavelength Dipole

Internal Material

Copper

Connector

N-Female

Length (MAX)

220mm

Diameter (MAX)

70 x 55mm

Antenna Weight (G.W)

230 g

Accessories (G.W)

50 g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount StylePole Mount / Well Mount
MountingStainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
