Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
- 2.3GHz-2.4GHz Band
- IEEE 802.16 System
- 10dBi Directional Multipoint applications
- Point to Point Bridge
- Public Wireless
- WiMAX,WLAN
- Wireless Video Systems
Features:
- Superior Performance
- Lightweight
- Good appearance design
- DC Short lightning protection
- Support is up and down or so to adjust
- Behind and support is an aluminum
- Outdoor antenna for public
- Includes tilt and swivel mast mount brackets
- RoHS Compliant
|
Frequency Range |
2300MHz - 2400MHz |
|---|---|
|
V.S.W.R (MAX) |
1.3 :1 |
|
Antenna Type |
Patch Type |
| Radiation | Directional |
|
Gain |
10 dBi |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
5 Watts |
|
Vertical Beam-width |
38 Deg |
|
Horizontal Beam-width |
72 Deg |
| FBR | Greater than 20 dB |
|
Impedance |
50 Ohm |
|
Antenna Design |
2(1x2) Patch Array |
|
Internal Material |
FR4(Taiwan) |
|
Connector |
N-Female |
|

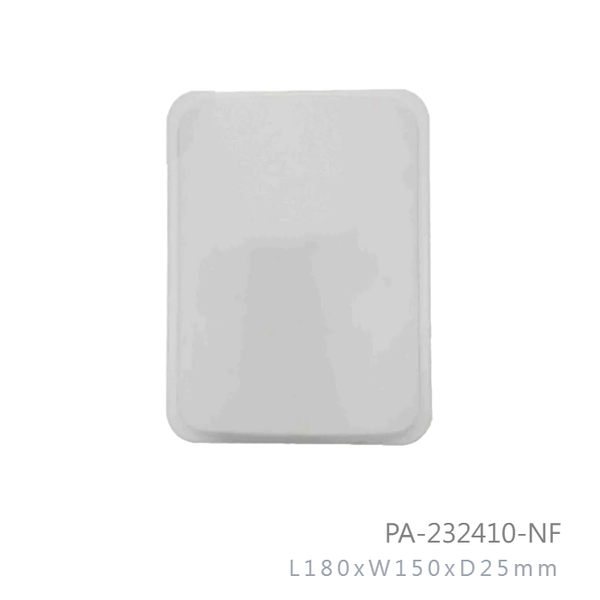

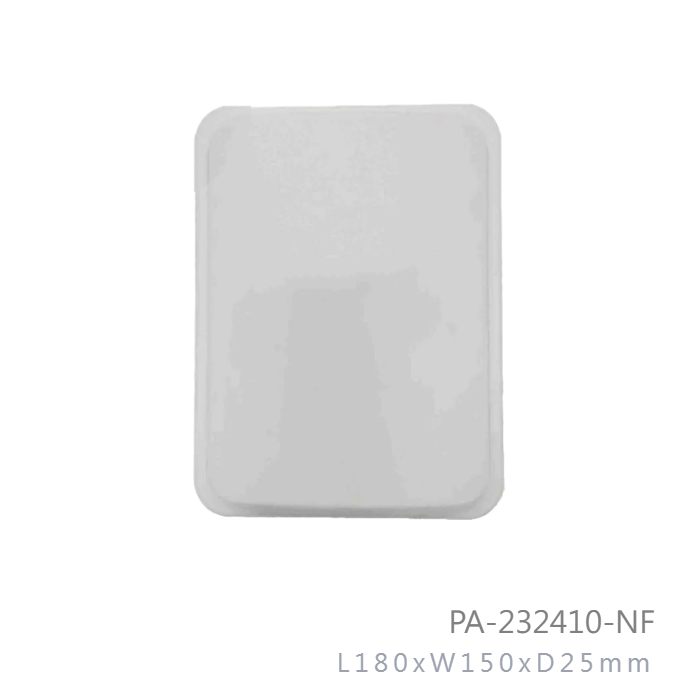

Length x Width(MAX) |
180 x 150mm |
|---|---|
|
Diameter (MAX) |
25mm |
|
Antenna Weight (G.W) |
370 g |
|
Accessories (G.W) |
200 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White ABS |
| Mount Style | Pole Mount / Wall Mount |
|
Parts Material |
Aluminum |
| Mounting | Stainless Steel |
| Mount Adjustment | 0-30deg |
|
Wind Survival |
Greater than 120MPH |
| Storage Temperature | -40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
|
Safety,Emission and other |
CE, FCC, RoHS |
