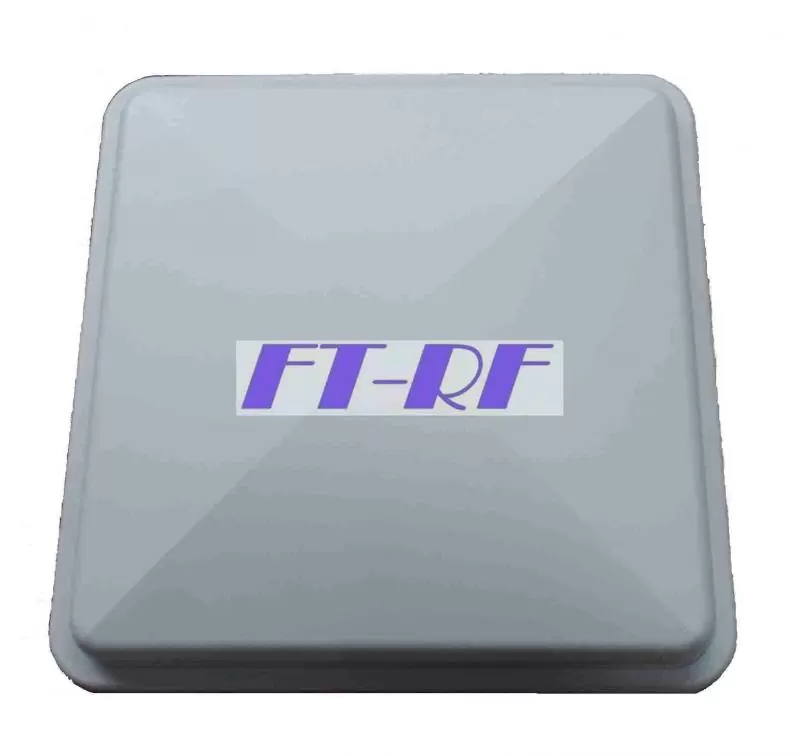

2.3GHz-2.4GHz 12dBi Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna2.3GHz-2.4GHz 12dBi Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna2.3GHz-2.4GHz 12dBi Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna

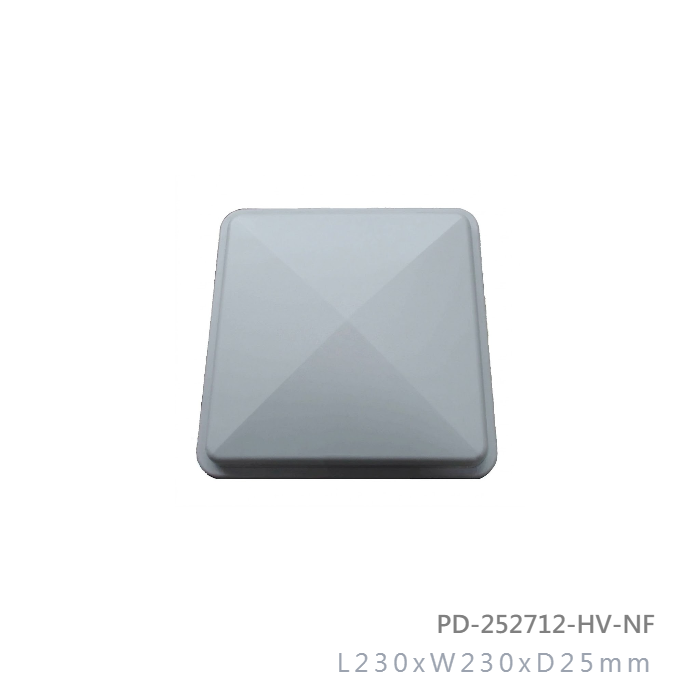

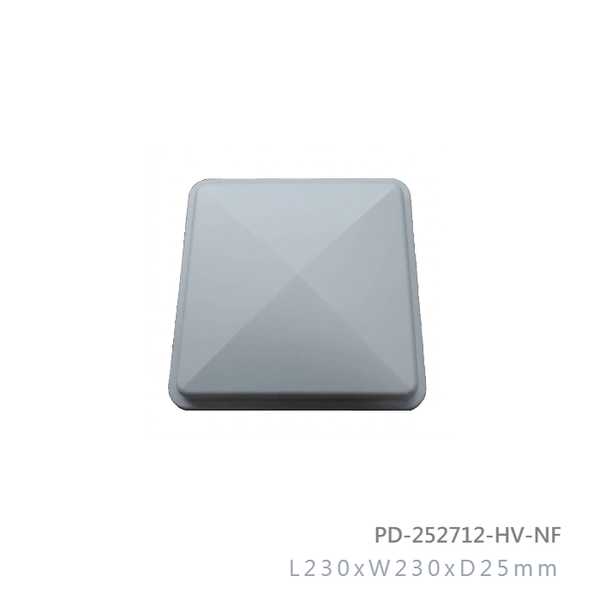

Model No: PD-252712-HV-NF

  • Dimension : L230xW230xD25mm
  • Weight : 0.8 KG
  • Connector : N-Female
  • Beam-width :Horz.Port1: 28 Deg / Port2: 27 Deg
  • Beam-width :Vert.Port1: 28 Deg / Port2: 26 Deg
INQUIRY

Applications:

  • 2.3GHz-2.4GHz Band
  • IEEE 802.16x,802.20x,Wireless Lan
  • Directional Multipoint applications 2 x 2 TX/RX
  • MIMO 2x2 Dual Port 12dBi
  • Public Wireless Point to Point
  • WiMAX,WiBro
  • Wireless Video Systems

Features:

  • Superior Performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is an aluminum
  • Outdoor antenna for public hotspot
  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2300MHz - 2400MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

12 dBi

Polarization

Dual Vertical and Horizontal

Maximum Power

5 Watts

Vertical Beam-width

Port1: 28 Deg / Port2: 27 Deg

Horizontal Beam-width

Port1: 28 Deg / Port2:26 Deg

FBR Greater than 18 dB
Cross Polarization Greater than -18 dB

Impedance

50 Ohm

Antenna Design

4(2x2) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female x 2

Length x Width(MAX)

230 x 230mm

Diameter (MAX)

25mm

Antenna Weight (G.W)

500 g

Accessories (G.W)

300 g

Application Indoor / Outdoor

Radome Material

White ABS

Mount Style Pole Mount / Wall Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater than 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
