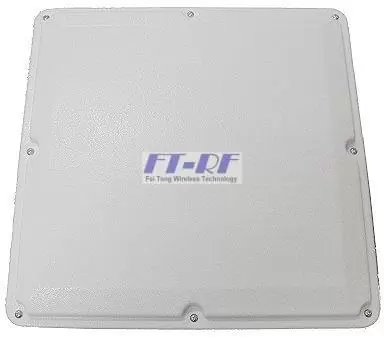

2.3GHz-2.4GHz 16dBi Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna2.3GHz-2.4GHz 16dBi Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna2.3GHz-2.4GHz 16dBi Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna

Model No: PD-232416-HV-NF

  • Dimension : L310xW310xD40mm
  • Weight : 1.1 KG
  • Connector : N-Female
  • Beam-width :Horz.Port1: 22 Deg / Port2: 23 Deg
  • Beam-width :Vert.Port1: 21 Deg / Port2: 22 Deg
INQUIRY

Applications:

  • 2.3GHz-2.4GHz Band
  • IEEE 802.16x,802.20x,Wireless Lan
  • Directional Multipoint applications 2 x 2 TX/RX
  • MIMO 2x2 Dual Port 16dBi
  • Public Wireless Point to Point
  • WiMAX,WiBro

Features:

  • Wireless Video SystemsSuperior Performance
  • The Weight is light
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is an aluminum
  • Outdoor antenna for public Hot spots
  • Includes tilt and swivel mast mounting brackets
  • RoHS Compliant

Frequency Range

2300MHz - 2400MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

16 dBi

Polarization

Dual Vertical and Horizontal

Maximum Power

5 Watts

Vertical Beam-width

Port1: 22 Deg / Port2: 23 Deg

Horizontal Beam-width

Port1: 21 Deg / Port2:22 Deg

FBR Greater than 23 dB
Cross Polarization Greater than -20 dB

Impedance

50 Ohm

Antenna Design

9(3x3) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female x 2

Length x Width(MAX)

310 x 310mm

Diameter (MAX)

40mm

Antenna Weight (G.W)

800 g

Accessories (G.W)

300 g

Application Indoor / Outdoor

Radome Material

White ABS

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater than 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
