Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
- 2300MHz to 2400MHz Band
- Omni Directional Multipoint applications
- IEEE 802.11x Wireless Lan
- 4dBi Omni Directional Multipoint applications
- Point to Point Bridge / MMDS / Hotspot
- Public Wireless
- Wireless Video Systems
Features:
- Superior performance
- Good appearance design
- DC Short lightning protection
- Support is up and down or so to adjust
- Behind and support is made of aluminum
- Outdoor antenna for public
- Including tilt and swivel mast mounting kit
- RoHS Compliant
Frequency Range | 2300MHz - 2400MHz |
|---|---|
V.S.W.R (MAX) | 1.3 :1 |
Antenna Type | Collinear |
| Radiation | Omni Directional |
Gain (MAX) | 4 dBi |
Polarization | Vertical |
Maximum Power | 50 Watts |
Vertical Beam-width | 50 Deg |
Horizontal Beam-width | 360 Deg |
Impedance | 50 Ohm |
Antenna Design | Dipole Array Dipole |
Internal Material | Copper |
Connector | N-Female |

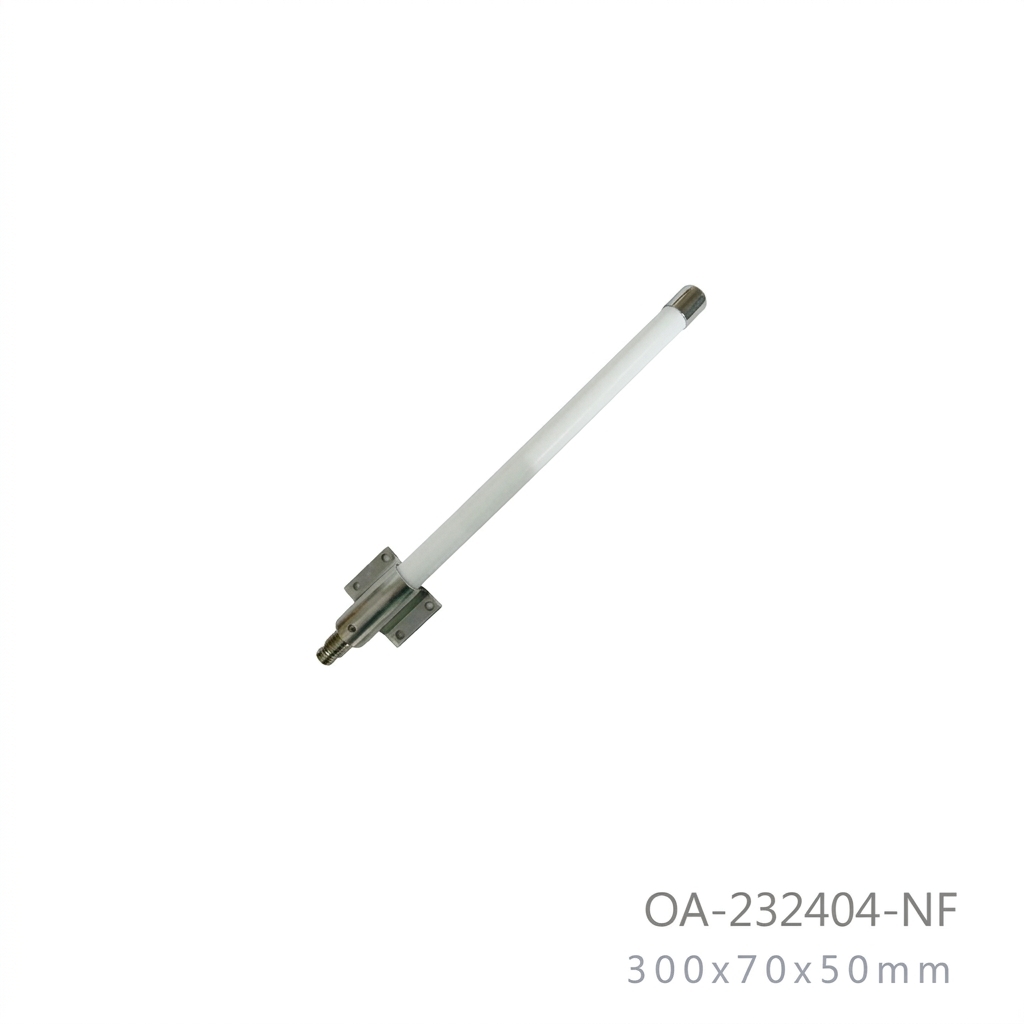

Length (MAX) | 300mm |
|---|---|
Diameter (MAX) | 70 x 55mm |
Antenna Weight (G.W) | 230 g |
Accessories (G.W) | 50 g |
| Application | Indoor / Outdoor |
Radome Material | White Fiberglass |
Parts Material | Aluminum |
| Mount Style | Pole Mount / Wall Mount |
| Mounting | Stanless Steel |
Wind Survival | Greater then 150MPH |
Storage Temperature | -40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
Safety, Emission and other | RoHS |
