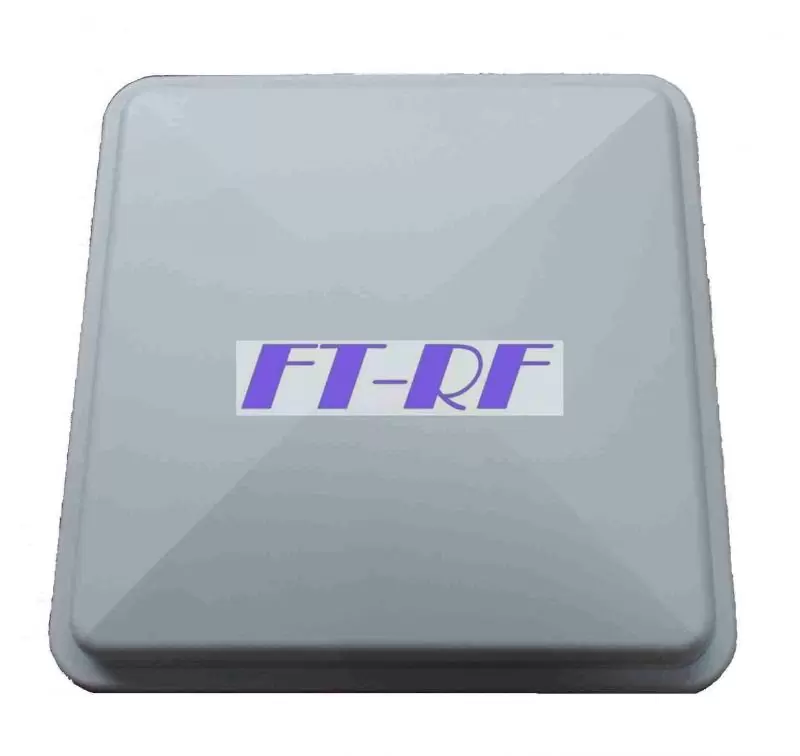

2.3GHz-2.5GHz 14dbi Panel Directional Outdoor Antenna2.3GHz-2.5GHz 14dbi Panel Directional Outdoor Antenna2.3GHz-2.5GHz 14dbi Panel Directional Outdoor Antenna

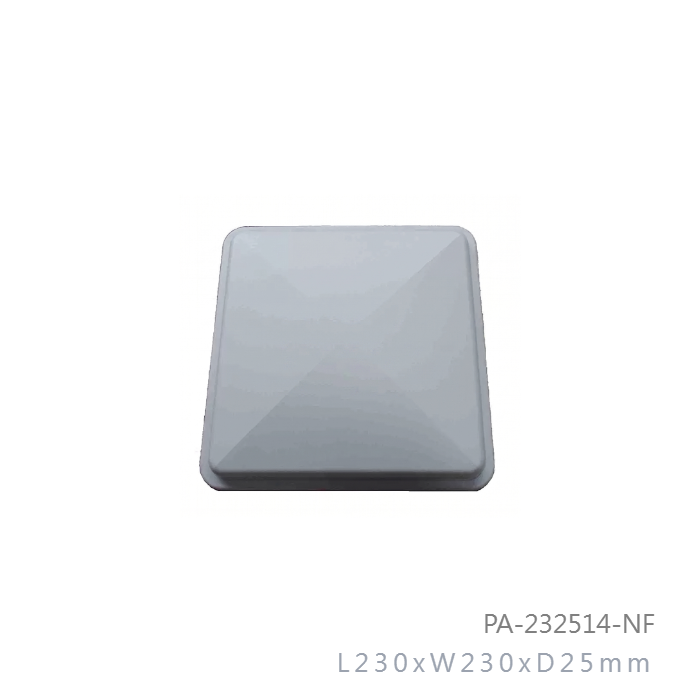

Model No: PA-232514-NF

  • Dimension : L230xW230xD25mm
  • Weight : 340g
  • Connector : N-Female
  • Beam-with : Horz.66 Deg Vert.16Deg
INQUIRY

Applications:

  • 2.3GHz-2.5GHz ISM Band
  • IEEE 802.11b,802.11g,802.11b/g,802.11n ,802.16dWirless Lan
  • 14dBi Directional Multipoint applications
  • Point to Point Bridge
  • Bluetooth
  • Public Wireless Hotspot
  • WiFi,RFID ,WLAN
  • Wireless Video Systems

Features:

  • Superior Performance
  • Lightweight
  • Good appearance designs
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is an aluminum
  • Outdoor antenna for public hotspots
  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2300MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

14 dBi

Polarization

Vertical or Horizontal

Maximum Power

15Watts

Vertical Beam-with

16 Deg

Horizontal Beam-with

66 Deg

FBR Greater than 22 dB

Impedance

50 Ohm

Antenna Design

4(2x2) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female

Length x Width(MAX)

230 x 230mm

Diameter (MAX)

25mm

Antenna Weight (G.W)

340 g

Accessories (G.W)

250 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount/Wall Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment 0-30deg

Wind Survival

Greater than 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS
