Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
-
2.3GHz - 2.7GHz Band
-
IEEE 802.16 System
-
12dBi Directional Multipoint applications
-
Point to Point Bridge
- Pubic Wireless
-
WiMAX,WLAN
-
Wireless Video Systems
Features:
-
Superior Performance
-
Lightweight
-
Good appearance designs
-
DC Short lightning protection
-
Outdoor antenna for public hotspots
-
Includes tilt and swivel mast mount brackets
-
RoHS Compliant
|
Frequency Range |
2300MHz - 2700MHz |
|---|---|
|
V.S.W.R (MAX) |
1.5 :1 |
|
Antenna Type |
Patch Type |
| Radiation | Directional |
|
Gain (Avg) |
12 dBi |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
5 Watts |
|
Vertical Beam-width |
30 Deg |
|
Horizontal Beam-width |
30 Deg |
| F /B | Greater than 20 dB |
|
Impedance |
50 Ohm |
|
Antenna Design |
2x2 Patch Array |
|
Internal Material |
FR4(Taiwan) |
|
Connector |
N-Female |
|

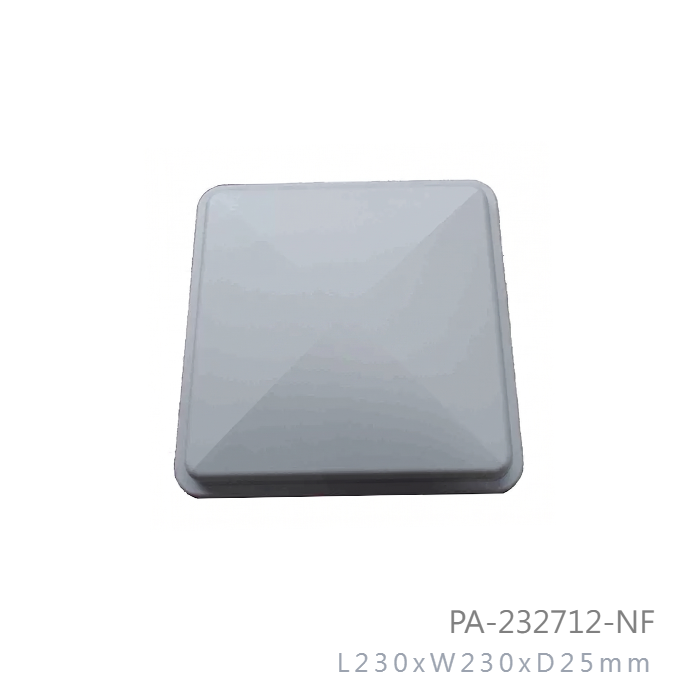

Length x Width(MAX) |
230 x 230mm |
|---|---|
|
Diameter (MAX) |
25mm |
|
Antenna Weight (G.W) |
400 g |
|
Accessories (G.W) |
300 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White ABS |
| Mount Style | 32 to 42mm Pole Mount 6mm Well Mount |
|
Parts Material |
Aluminum |
| Mounting | Stainless Steel |
| Mount Adjustment | +- 28deg |
|
Wind Survival |
Greater than 150MPH |
| Storage Temperature | -40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
RoHS, CE, FCC, WEEE |
