Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
- 2.3GHz to 2.4GHz Band
- IEEE 802.16x / 802.20x Wireless Lan
- MINI Omni Directional Multipoint applications
- MMDS
- Pubic Wireless Hotspot
- WiMAX ,WiFi
- Wireless Video Systems
Features:
- Superior performance
- Lightweight
- Good appearance design
- DC Short lightning protection
- Collinear Vertical Polarization installation
- Behind and support is an aluminum
- Outdoor antenna for public hotspot
- Including tilt and swivel mast mounting kit
- RoHS Compliant
- Base station antennas, miniature design
|
Frequency Range |
2300MHz - 2400MHz |
|---|---|
|
V.S.W.R (MAX) |
1.3 :1 |
|
Antenna Type |
Collinear |
| Radiation | Small Size Omni Directional |
|
Gain (MAX) |
12 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
50 Watts |
|
Vertical Beam-width |
8 Deg |
|
Horizontal Beam-width |
360 Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Dipole Array Dipole |
|
Internal Material |
Copper |
|
Connector |
N-Male |
|

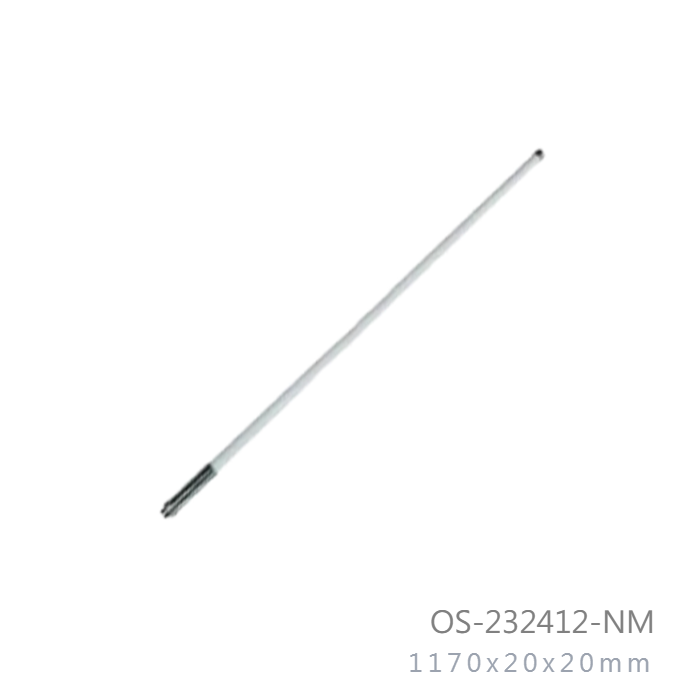

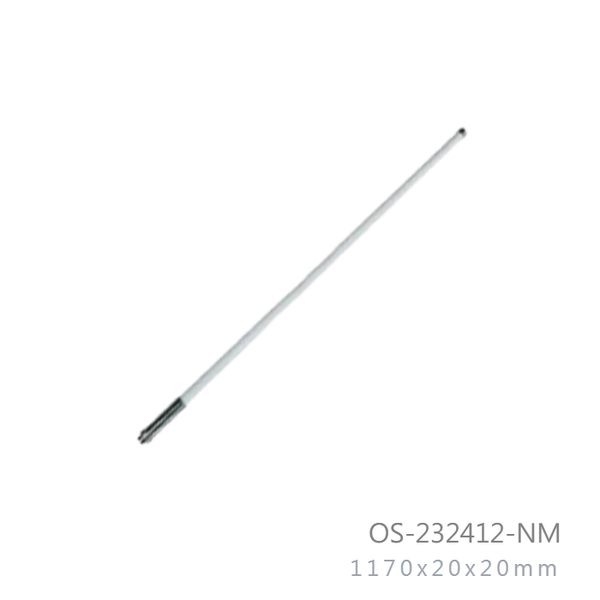

Length (MAX) |
1170mm |
|---|---|
|
Diameter (MAX) |
20 x 20mm |
|
Antenna Weight (G.W) |
380 g |
|
Accessories (G.W) |
5 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White Fiberglass |
|
Ground Material |
Aluminum or Copper |
| Mount Style | NO |
| Mounting | Optional / Pole Mount / Well Mount |
|
Wind Survival |
Greater than 160MPH |
|
Storage Temperature |
-40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
|
Safety, Emission and other |
RoHS |
