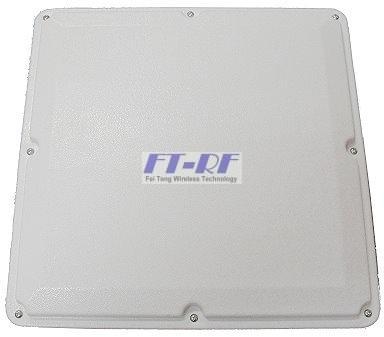

2.3GHz to 2.4GHz 18dbi Panel Directional Outdoor Antenna2.3GHz to 2.4GHz 18dbi Panel Directional Outdoor Antenna2.3GHz to 2.4GHz 18dbi Panel Directional Outdoor Antenna

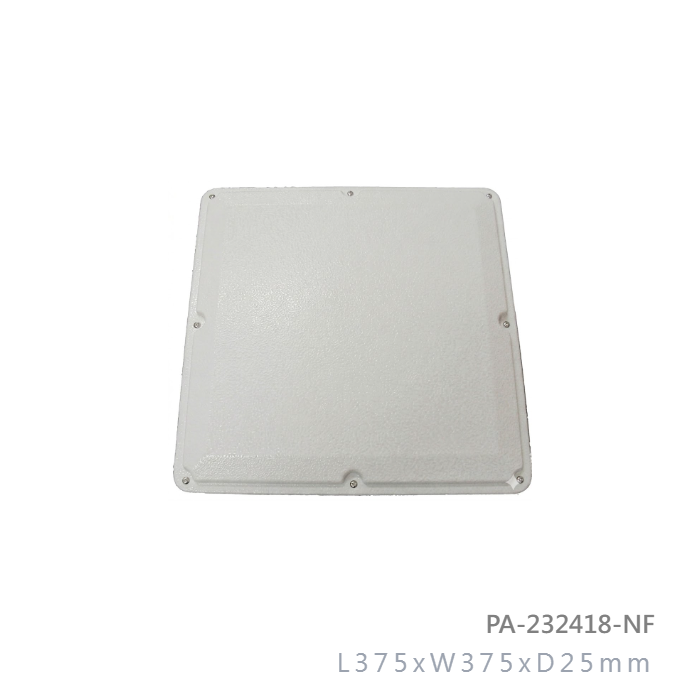

Model No: PA-232418-NF

  • Dimension : L375xW375xD25mm
  • Weight : 1.5 KG
  • Connector : N-Female
  • Beam-width : Horz.17deg Vert.17deg
INQUIRY

Applications:

  • 2.3GHz-2.4GHz Band
  • IEEE 802.16 System
  • 18dBi Directional Multipoint applications
  • Point to Point Bridge
  • Public Wireless
  • WiMAX,WLAN
  • Wireless Video Systems

Features:

  • Superior Performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is an aluminum
  • Outdoor antenna for public
  • Includes tilt and swivel mast mount brackets
  • RoHS Compliant

Frequency Range

2300MHz - 2400MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

18 dBi

Polarization

Vertical

Maximum Power

5 Watts

Vertical Beam-width

17 Deg

Horizontal Beam-width

17 Deg

FBR Greater than 27 dB

Impedance

50 Ohm

Antenna Design

16(4x4) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female

Length x Width(MAX)

375 x 375mm

Diameter (MAX)

25mm

Antenna Weight (G.W)

1000 g

Accessories (G.W)

250 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater than 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

 RoHS
