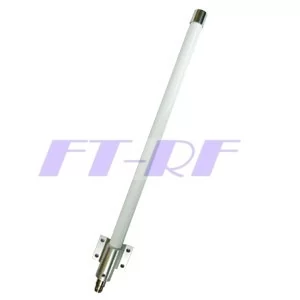

2.3GHz to 2.4GHz 5dBi Outdoor OMNI Directional Antenna2.3GHz to 2.4GHz 5dBi Outdoor OMNI Directional Antenna2.3GHz to 2.4GHz 5dBi Outdoor OMNI Directional Antenna

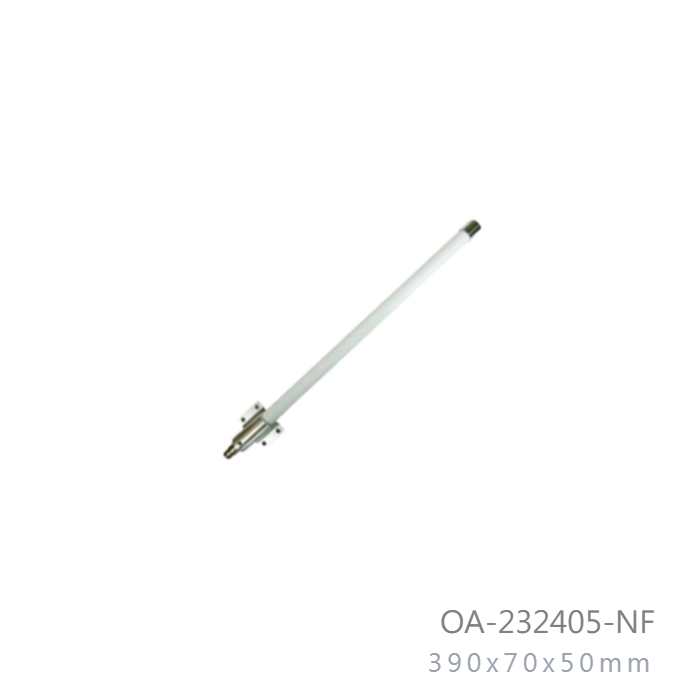

Model No: OA-232405-NF

  • Dimension : 390x70x50mm
  • Weight : 300g
  • Connector : N-Female
  • Beam-width : Horz.360 Deg Vert.38 Deg
INQUIRY

Applications:

  • 2.3GHz to 2.4GHz Band
  • IEEE 802.11x Wireless Lan
  • 5dBi Omni Directional Multipoint applications
  • MMDS
  • Pubic Wireless Hotspot
  • WiMAX ,WiBro
  • Wireless Video Systems

Features:

  • Superior Performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Installed for Collinear Vertical Polarization
  • Behind and support is an aluminum
  • Outdoor antenna for public hotspot
  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2300MHz - 2400MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Collinear

RadiationOmni Directional

Gain (MAX)

5 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

38 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array Dipole

Internal Material

Copper

Connector

N-Female

Length (MAX)

390mm

Diameter (MAX)

70 x 55mm

Antenna Weight (G.W)

250 g

Accessories (G.W)

50 g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount StylePole Mount / Wall Mount
MountingStainless Steel

Wind Survival

Greater then 150MPH

Storage Temperature

-40 to +80

Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing

Safety, Emission and other

RoHS
