Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
- 2.3GHz - 2.6GHz Band
- IEEE 802.16x / 802.20x Wireless LAN
- MINI Omni Directional Multipoint Applications
- MMDS
- Public Wireless Hotspot
- WiMAX, WiFi
- Wireless Video Systems
Features:
- Superior performance
- Lightweight
- Base station antenna, miniature design
- DC Short lightning protection
- Installed for Collinear Vertical Polarization
- Behind and support is an aluminum
- Outdoor antenna for public hotspots
- Includes tilt and swivel mast mounting kit
- RoHS Compliant
|
Frequency Range |
2300MHz - 2600MHz |
|---|---|
|
V.S.W.R (MAX) |
1.3 :1 |
|
Antenna Type |
Collinear |
| Radiation | Omni Directional |
|
Gain (MAX) |
3 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
50 Watts |
|
Vertical Beam-width |
52 Deg |
|
Horizontal Beam-width |
360 Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
1/2 Wavelength Dipole |
|
Internal Material |
Copper |
|
Connector |
N-Male |
|

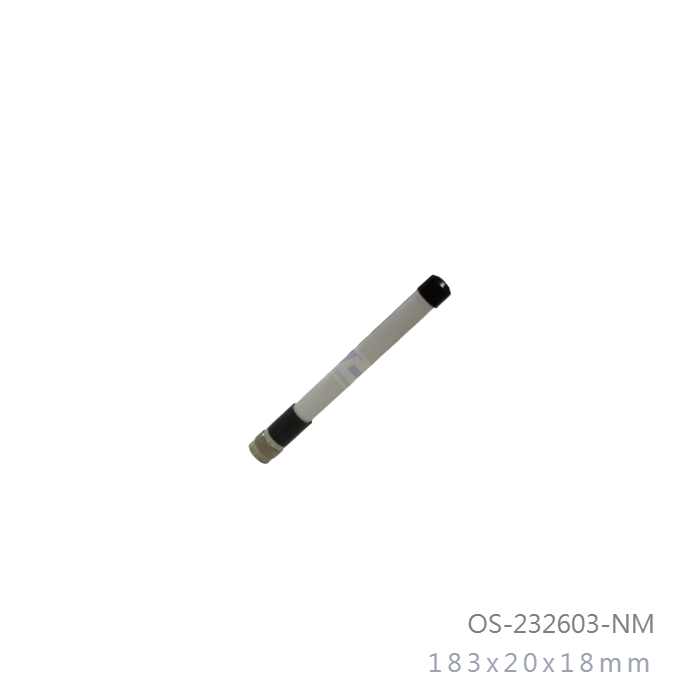

Length (MAX) |
183mm |
|---|---|
|
Diameter (MAX) |
20 x 18mm |
|
Antenna Weght (G.W) |
95 g |
|
Accessories (G.W) |
5 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White or Black Fiberglass |
|
Parts Material |
Aluminum |
|
Wind Survival |
Greater than 150MPH |
|
Storage Temperature |
-40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
|
Safety,Emission and other |
RoHS |
