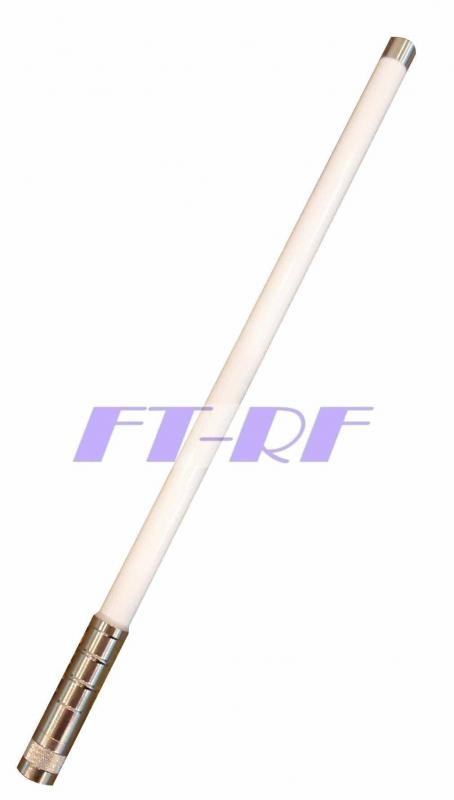

2.4 and 5.8GHz 5dBi Outdoor Mini OMNI Dual Band Antenna N-Male2.4 and 5.8GHz 5dBi Outdoor Mini OMNI Dual Band Antenna N-Male2.4 and 5.8GHz 5dBi Outdoor Mini OMNI Dual Band Antenna N-Male

Model No: OU-245805S-NM

  • Dimensions: 493x20x20mm
  • Weight: 190g
  • Connector: N-Male
  • Beam-width: Horz.360Deg Vert.20Deg
INQUIRY

Applications:

  • 2.4GHz& 5GHz Dual Band

  • IEEE 802.11a,802.11b,802.11g,802.11b/g,802.11n Wireless Lan

  • 3dBi & 5dBi Mini Omni Directional Multipoint applications

  • Bluetooth, Point to Multipoint

  • Public Wirleess Hotspot

  • WiFi,RFID,WiMAX

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance design

  • DC Short lightning protection

  • Installed for Collinear Vertical Polarization

  • Behind and support are made of aluminum

  • Outdoor antenna for public Hot spots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

2400 to 2500MHz

5125 to 5875MHz

V.S.W.R (MAX)

1.8 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

2.4GHz : 3dBi

5.8GHz : 5dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

2.4GHz: 13Deg

5.8GHz: 25Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Male

Length (MAX)

493 mm

Diameter (MAX)

20 x 20mm

Antenna Weight (G.W)

190 g

Accessories (G.W)

5 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Wind Survival

Greater than 150MPH

 Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing
Storage Humidity   5%~90% non-condensing
Safety, Emission and other

RoHS, CE, FCC, WEEE
