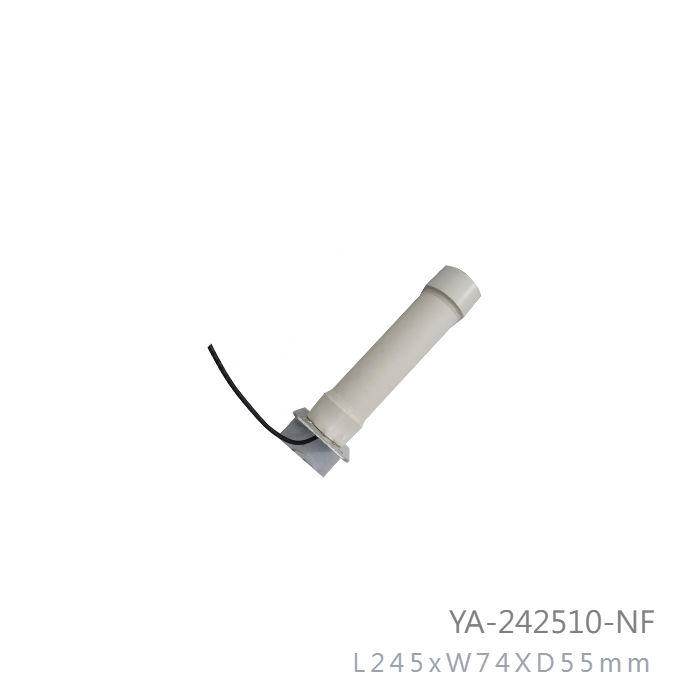

2.4GHz - 2.5GHz 10dbi Yagi Directional Outdoor Antenna

Model No: YA-242510-NF

  • Dimensions: L245xW74XD55mm
  • Weight: 200g
  • Connector: N-Female
  • Beam-width: Horz.45 deg Vert.41 deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan

  • 8dbi Directional Multipoint applications

  • Point to Point Bridge

  • Bluetooth

  • Pubic Wireless Hotspot

  • WiFi,RFID ,WLAN

  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Yagi Type

Radiation Directional

Gain (Ave)

10 dBi

Polarization

Vertical or Horizontal

Maximum Power

50 Watts

Vertical Beam-width

45 Deg

Horizontal Beam-width

41 Deg

F /B Greater than 12 dB

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Cooper

Connector

60CM Pigtail with the N-Female



Length x Width(MAX)

245 x 74mm

Diameter (MAX)

55mm

Antenna Weight (G.W)

200 g

Accessories (G.W)

200 g

Application Indoor / Outdoor

Radome Material

White ABS+Fiberglass+UV

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater than 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

   RoHS, CE, FCC, WEEE
