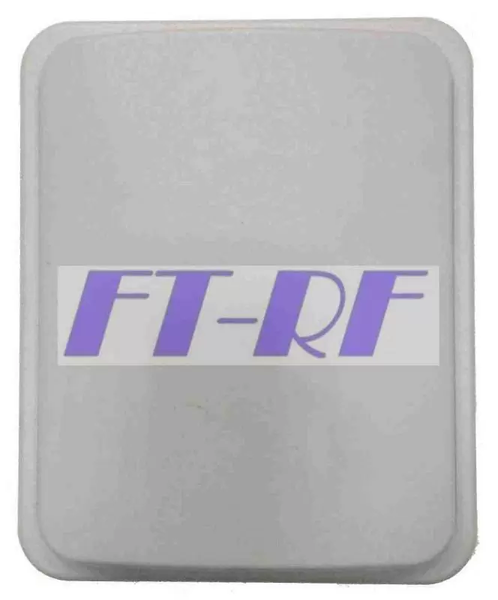

2.4GHz-2.5GHz 12dbi Panel Directional Outdoor Antenna2.4GHz-2.5GHz 12dbi Panel Directional Outdoor Antenna2.4GHz-2.5GHz 12dbi Panel Directional Outdoor Antenna

Model No: PA-242512-NF

Datasheet:Download

  • Dimensions: L180xW150xD25mm
  • Weight: 220g
  • Connector: N-Female
  • Beam-width: Horz.42 Deg Vert.38 Deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan

  • 12dBi Directional Multipoint applications

  • Point to Point Bridge

  • Bluetooth

  • Public Wireless Hotspot

  • WiFi,RFID ,WiLAN

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance design

  • DC Short lightning protection

  • RoHS Compliant

In broadcast engineering, a panel antenna is a directional antenna that is widely used to obtain a wireless Internet connection.
Directional antennas receive and broadcast a signal in only one direction, resulting in better signal quality.
Panel antennas, for example, are used in underdeveloped countries to improve the range and functionality of wireless Internet networks.

A panel antenna is shaped like a panel and is typically fixed on a mounting bracket on the exterior or inside of a building. It can also be mounted on a swivel mount, allowing the user to adjust the antenna for optimal signal reception. This type of antenna is usually one-directional, with less mobility side-to-side and up-and-down than an omnidirectional antenna, which can swivel and entirely change its location. Two U-bolt brackets and waterproof were supplied in one piece of packing.

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

RadiationDirectional

Gain

12 dBi

Polarization

Vertical or Horizontal

Maximum Power

5 Watts

Vertical Beam-width

38 Deg

Horizontal Beam-width

42 Deg

FBRGreater than 20 dB

Impedance

50 Ohm

Antenna Design

4(2x2) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female


Length x Width(MAX)

180 x 150mm

Diameter (MAX)

25mm

Antenna Weight (G.W)

220 g

Accessories (G.W)

440 g

ApplicationIndoor / Outdoor

Radome Material

White ABS +UV

Mount StylePole Mount

Parts Material

Aluminum

MountingStainless Steel and Aluminum
Mount Adjustment0-30deg

Wind Survival

Greater than 150MPH

Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE
