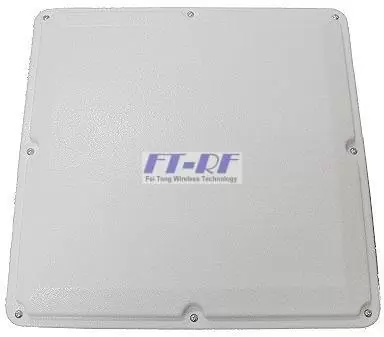

2.4GHz-2.5GHz 16dBi 2x2 MIMO Dual Polarized +-45 deg Panel Directional Outdoor Antenna2.4GHz-2.5GHz 16dBi 2x2 MIMO Dual Polarized +-45 deg Panel Directional Outdoor Antenna2.4GHz-2.5GHz 16dBi 2x2 MIMO Dual Polarized +-45 deg Panel Directional Outdoor Antenna

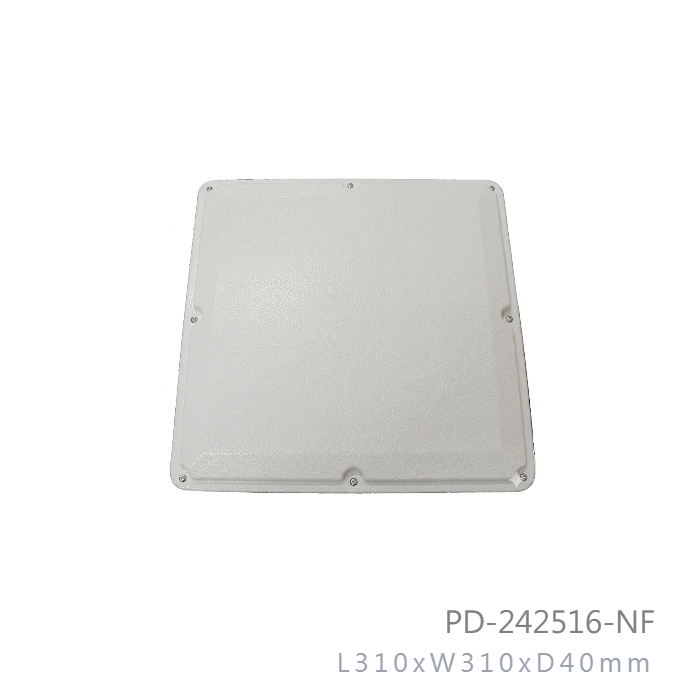

Model No: PD-242516-NF

  • Dimensions: L310xW310xD40mm
  • Weight: 1 KG
  • Connector: N-Female
  • Port1: :+45. 21 Deg / -45: 21 Deg
  • Port2: :-45.: 21 Deg / +45: 21 Deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan

  • Directional Multipoint applications

  • MINO 2x2 TX/RX

  • Pubic Wireless Point to Point Bridge

  • WiFi,RFID

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance designs

  • DC Short lightning protection

  • Outdoor antenna for public hotspots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

16 dBi

Polarization

+-45 deg

Maximum Power

5 Watts

+45 Beam-width

21 Deg

-45 Beam-width

21 Deg

FBR Greater than 25 dB
Cross Polarization Greater than -23 dB

Impedance

50 Ohm

Antenna Design

9(3x3) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female x 2



Length x Width(MAX)

310 x 310 mm

Diameter (MAX)

40mm

Antenna Weight (G.W)

650 g

Accessories (G.W)

350 g

Application Indoor / Outdoor

Radome Material

White ABS

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater then 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE
