Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
-

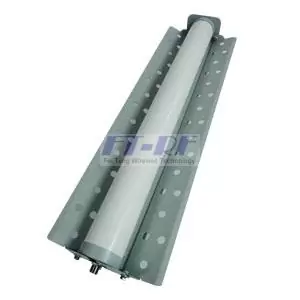

2.4GHz-2.5GHz ISM Band
-
IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan
-
Directional Multipoint applications
-
Point to Point Bridge and Multipoint Point
-
Bluetooth
-
Pubic Wireless Hotspot
-
WiFi,RFID
-
Wireless Video Systems
- Adjustment Horizontal and Vertical
Features:
- Superior Performance
- Good appearance design
- DC Short lightning protection
- RoHS Compliant
|
Frequency Range |
2400MHz - 2500MHz |
|---|---|
|
V.S.W.R (MAX) |
1.3 :1 |
|
Antenna Type |
Colinear |
| Radiation | Directional |
|
Gain |
17 - 20 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
50 Watts |
|
Vertical Beam-width |
Adjust 5 - 7 Deg |
|
Horizontal Beam-width |
Adjust 45 - 120 Deg |
| FBR | Greater than 20 dB |
|
Impedance |
50 Ohm |
|
Antenna Design |
Dipole Array |
|
Internal Material |
Copper |
|
Connector |
N-Female |
|
Length x Width(MAX) |
1280 x 200mm |
|---|---|
|
Diameter (MAX) |
80mm |
|
Antenna Weight (G.W) |
5500 g |
|
Accessories (G.W) |
700 g |
| Application | Indoor / Outdoor |
|
Radome Material |
ABS + Glass Fiber |
| Mount Style | Pole Mount and Wall Mount |
|
Parts Material |
Painted Galvanized Steel |
| Mounting | Stainless Steel |
| Mount Adjustment | 0-30deg |
|
Wind Survival |
Greater than 120MPH |
| Storage Temperature | -40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
RoHS, CE, FCC, WEEE |
