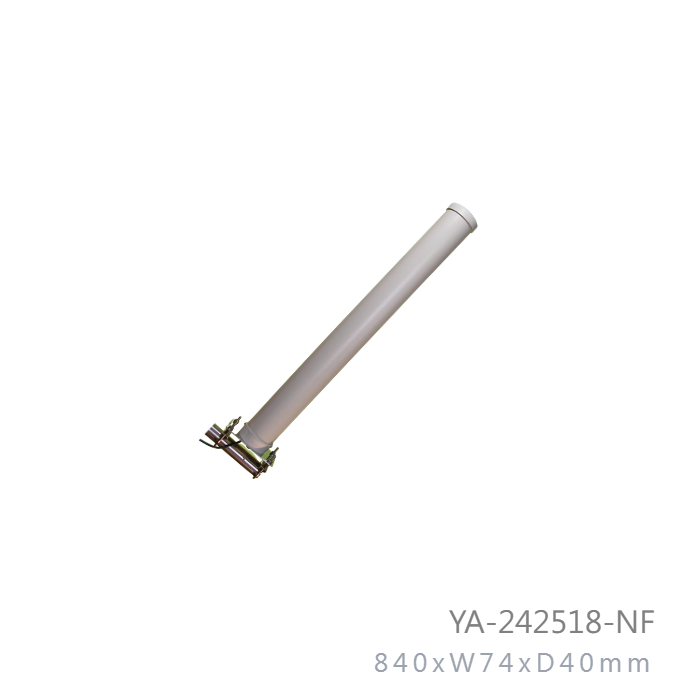

2.4GHz - 2.5GHz 18dbi Yagi Directional Outdoor Antenna2.4GHz - 2.5GHz 18dbi Yagi Directional Outdoor Antenna2.4GHz - 2.5GHz 18dbi Yagi Directional Outdoor Antenna

Model No: YA-242518-NF

Datasheet:Download

  • Dimensions: L840xW74xD40mm
  • Weight: 400g
  • Connector: N-Female
  • Beam-width: Horz.24 deg Vert.25 deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan

  • 8dbi Directional Multipoint applications

  • Point to Point Bridge

  • Bluetooth

  • Pubic Wireless Hotspot

  • WiFi,RFID ,WLAN

  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Yagi Type

Radiation Directional

Gain (MAX)

18 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

25 Deg

Horizontal Beam-width

24 Deg

F/B Greater than 26 dB

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Cooper

Connector

60cm Pigtail with the N-Female



Length x Width(MAX)

840 x 74mm

Diameter (MAX)

55mm

Antenna Weight (G.W)

400 g

Accessories (G.W)

200 g

Application Indoor / Outdoor

Radome Material

White ABS+Fiberglass+UV

Mount Style Pole Mount / Wall Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater than 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
