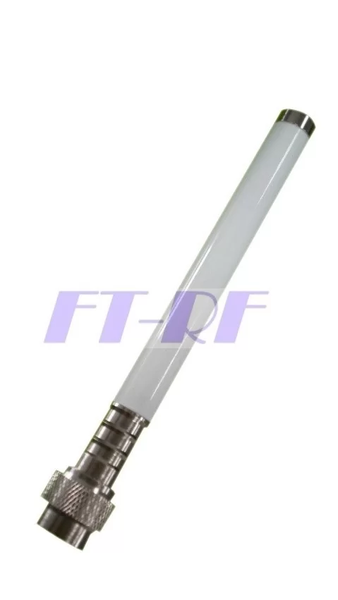

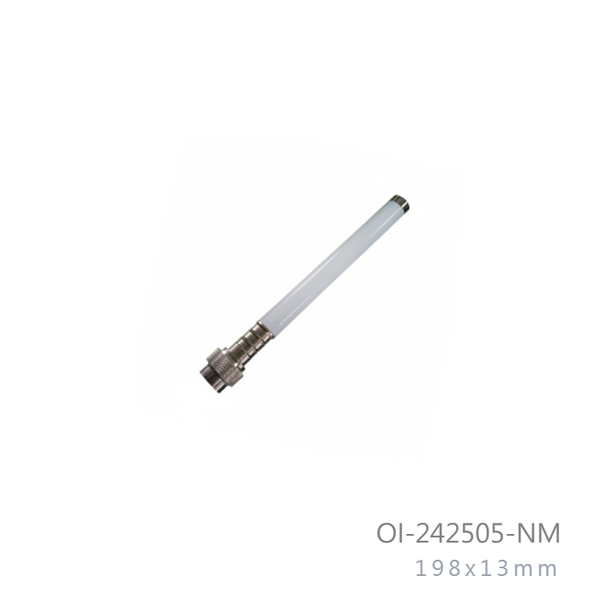

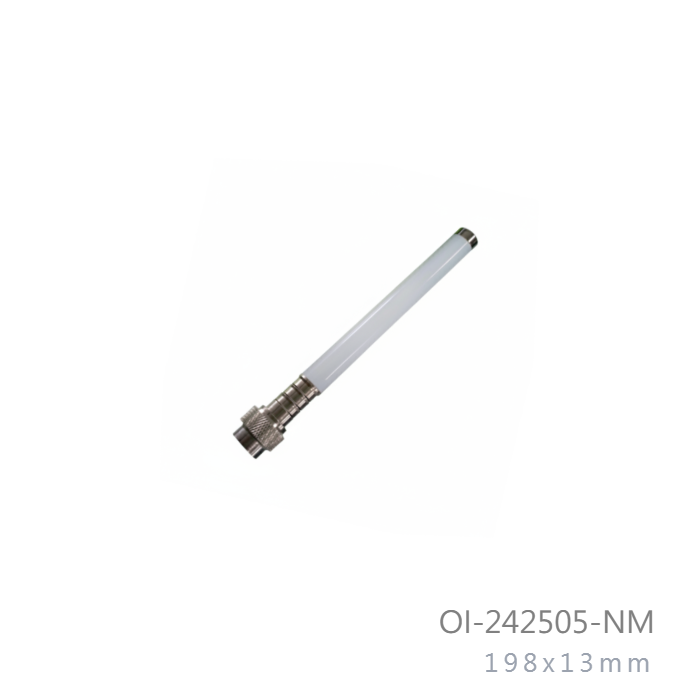

2.4GHz to 2.5GHz 5dBi Super Mini OMNI Directional Outdoor Antenna2.4GHz to 2.5GHz 5dBi Super Mini OMNI Directional Outdoor Antenna2.4GHz to 2.5GHz 5dBi Super Mini OMNI Directional Outdoor Antenna

Model No: OI-242505-NM

Datasheet:Download

  • Dimension : 198x13mm
  • Weight: 64g
  • Connector: N-Male
  • Beam-width: Horz.360 Deg Vert.33 Deg
INQUIRY

Applications:

  • 4GHz-2.5GHz 5dbi ISM Band
  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan
  • Omni Directional Multipoint applications
  • Bluetooth, Point to Multipoint
  • Public Wireless Hotspot
  • Wi-Fi, RFID
  • Wireless Video Systems

Features:

  • Installed for Collinear Vertical Polarization
  • Outdoor antenna for public Hot spots
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

2.0: 1

Antenna Type

Collinear

Radiation

Omni Directional

Gain (MAX)

5 dBi

Polarization

Vertical

Input Power

0.5 Watts

Vertical Beam-width

33 Deg

Horizontal Beam-width

360Deg

Impedance

50 Ohm

Antenna Design

 Dipole Array

Internal Material

PCB+ Spring

Connector

N-Male



Length (MAX)

198 mm

Diameter (MAX)

13 mm

Antenna Weight (G.W)

64 g

Application

Outdoor / Indoor

Radome Material

White Fiberglass

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

 Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

 RoHS, WEEE, CE, FCC
