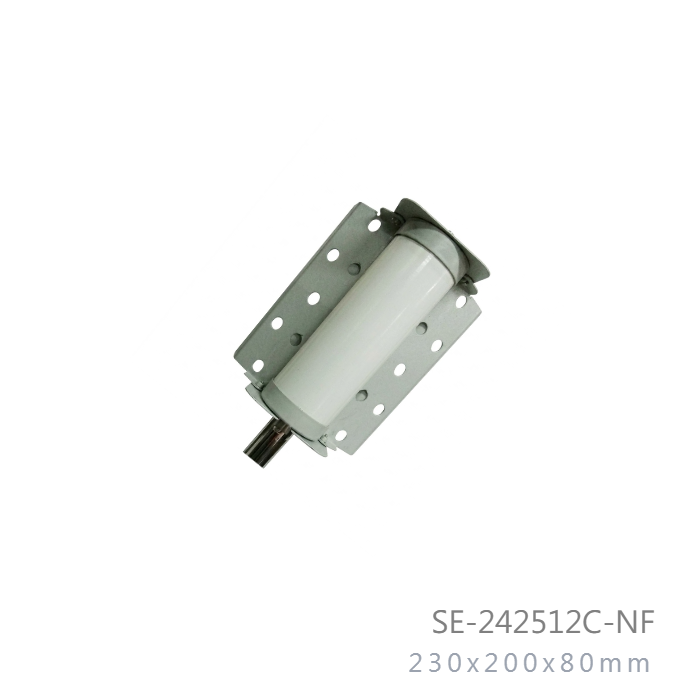

2.4GHz-2.5GHz 7-12dBi Adjust 45-120 Deg Vertical Sector Directional Outdoor Antenna

Model No: SE-242512C-NF

  • Dimensions: 230x200x80mm
  • Weight: 2.5 KG
  • Connector: N-Female
  • Beam-width: Horz.45-120 Deg Vert.20-30 Deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan

  • Directional Multipoint applications

  • Point to Point Bridge and Multipoint Point

  • Bluetooth

  • Public Wireless Hotspot

  • WiFi,RFID

  • Wireless Video Systems

  • Adjustment Horizontal and Vertical

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Colinear

Radiation Directional

Gain

7 ~ 12 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

Adjust 20~30 Deg

Horizontal Beam-width

Adjust 45~120 Deg

FBR Greater than 15 dB

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female



Length x Width(MAX)

235 x 200mm

Diameter (MAX)

80mm

Antenna Weight (G.W)

2100 g

Accessories (G.W)

300 g

Application Indoor / Outdoor

Radome Material

ABS + Glass Fiber

Mount Style Pole Mount

Parts Material

Pointed Galvanized Steel

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater than 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE
