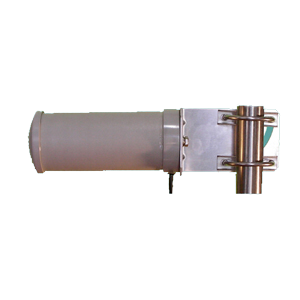

2.4GHz - 2.5GHz 8dbi Yagi Directional Outdoor Antenna (SMA-Female)2.4GHz - 2.5GHz 8dbi Yagi Directional Outdoor Antenna (SMA-Female)2.4GHz - 2.5GHz 8dbi Yagi Directional Outdoor Antenna (SMA-Female)

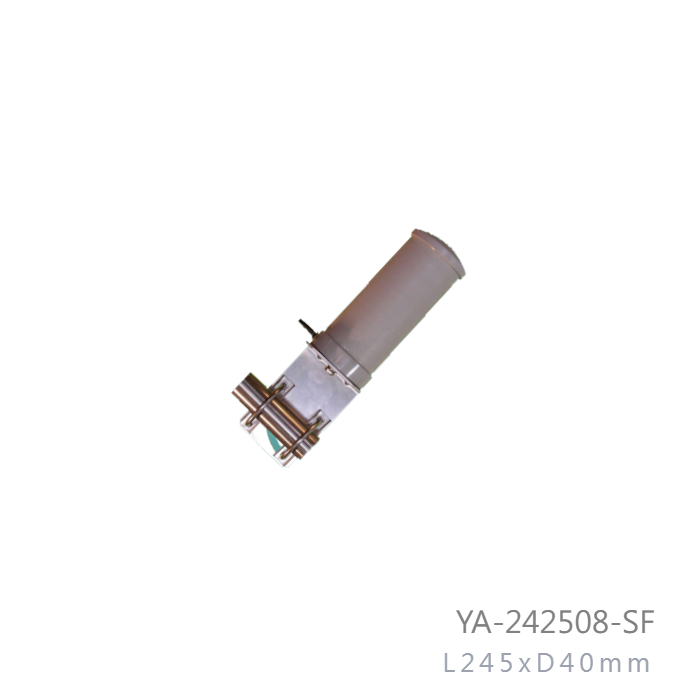

Model No: YA-242508-SF

Datasheet:Download

  • Dimensions: L245xD40mm
  • Weight: 200g
  • Connector: SMA-Female
  • Beam-width: Horz.48 deg Vert.35 deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band

  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless Lan

  • 8dbi Directional Multipoint applications

  • Point to Point Bridge

  • Bluetooth

  • Pubic Wireless Hotspot

  • WiFi,RFID ,WLAN

  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Yagi Type

Radiation Directional

Gain (Ave)

8 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

35 Deg

Horizontal Beam-width

48 Deg

F /B Greater than 13 dB

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Cooper

Connector

60cm Pigtail with the SMA-Female



Length x Width(MAX)

245 x 74mm

Diameter (MAX)

55mm

Antenna Weight (G.W)

200 g

Accessories (G.W)

200 g

Application Indoor / Outdoor

Radome Material

White ABS+Fiberglass

Mount Style Pole Mount / Wall Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater than 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

WEEE, CE, FCC, RoHS
