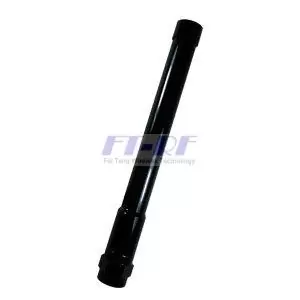

2.4GHz-2.7GHz 3dBi Outdoor Mini OMNI Directional Antenna(N-Male)2.4GHz-2.7GHz 3dBi Outdoor Mini OMNI Directional Antenna(N-Male)2.4GHz-2.7GHz 3dBi Outdoor Mini OMNI Directional Antenna(N-Male)

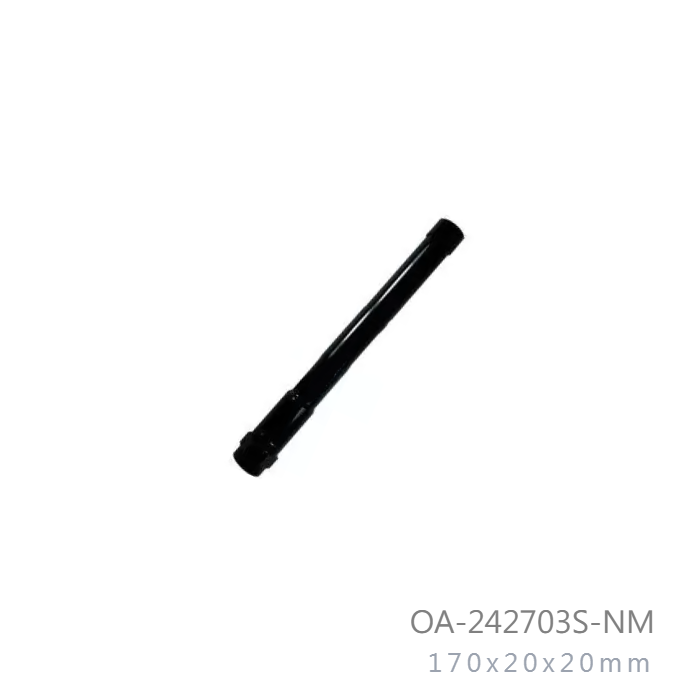

Model No: OA-242703S-NM

  • Dimensions: 170x20x20mm
  • Weight: 160g
  • Connector: N-Male
  • Beam-width: Horz.360 deg Vert.68 deg
INQUIRY

Applications:

  • 2.4GHz-2.7GHz ISM Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n 802.16d 802.20 WLAN

  • MINI Omni Directional Multipoint applications

  • Bluetooth

  • Pubic Wireless Hotspot

  • WiFi,RFID,WiMAX

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance design

  • DC Short lightning protection

  • Narrow base station descent

  • Behind and support are made of aluminum

  • Outdoor antenna for public hotspots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

2400MHz - 270MHz

V.S.W.R (MAX)

1.351

Antenna Type

Collinear

Radiation Small Size Omni Directional

Gain (MAX)

3 dBi

Polarization

Vertical

Maximum Power

200 Watts

Vertical Beam-width

68eg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

1/4 Wavelength Dipole

Internal Material

Copper

Connector

N-Male

Length (MAX)

170mm

Diameter (MAX)

20 x 20mm

Antenna Weight (G.W)

160g

Accessories (G.W)

5 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Ground Material

Aluminum or Copper

Mount Style NO
Mounting Optional / Pole Mount / Well Mount

Wind Survival

Greater than 180MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE
