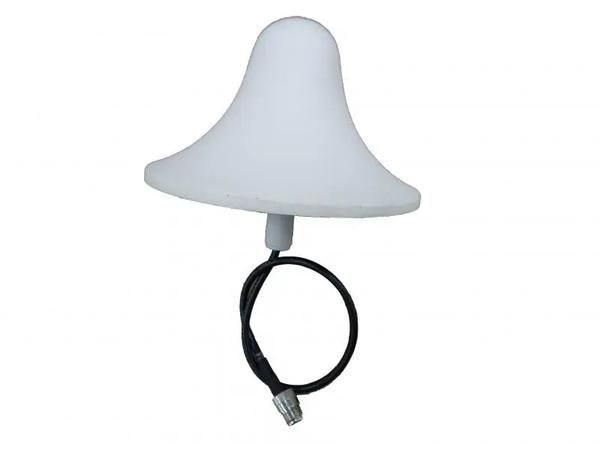

2.4GHz-2.5GHz 3dBi indoor Ceiling Mount OMNI Directional Antenna2.4GHz-2.5GHz 3dBi indoor Ceiling Mount OMNI Directional Antenna2.4GHz-2.5GHz 3dBi indoor Ceiling Mount OMNI Directional Antenna

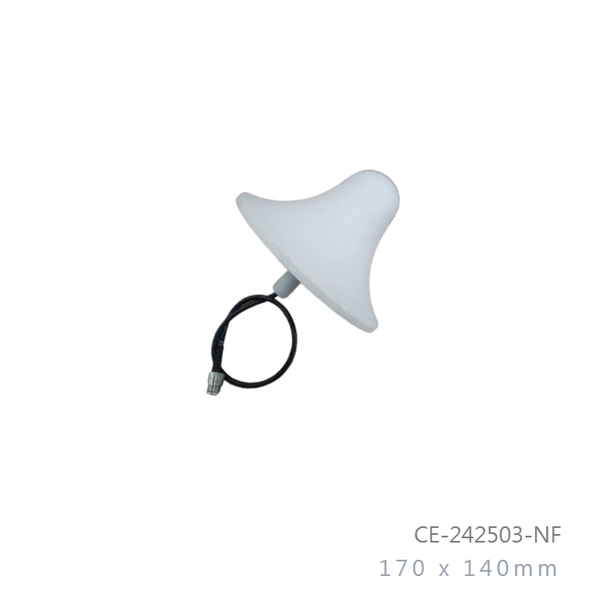

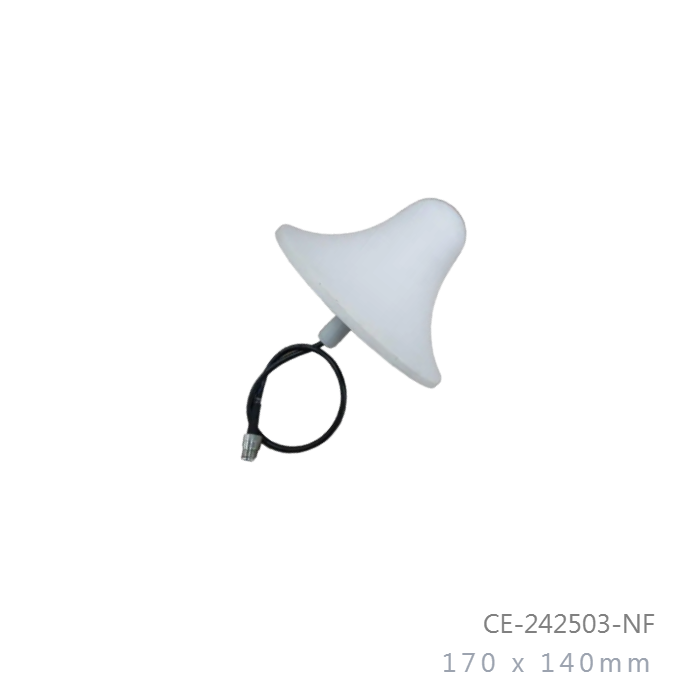

Model No: CE-242503-NF

  • Dimension: 170*140mm
  • Weight: 210g
  • Connector: 37CM FT200 cable with N-Female
  • Beam-width: Horz.360 Deg Vert.26 Deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz 2dbi ISM Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan

  • Omni Directional Multipoint applications

  • Bluetooth, Point to Multipoint

  • Public Wireless Hotspot

  • WiFi,RFID

  • Wireless Video Systems

Features:

  • Installed for Collinear Vertical Polarization
  • Indoor antenna for public Hot spots

  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

2.0 : 1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

3 dBi

Polarization

Vertical

Maximum Power

5 Watts

Vertical Beam-with

69 Deg

Horizontal Beam-with

360 Deg

Impedance

50 Ohm

Internal Material

FT200 Cable

Connector

N Female

Length (MAX)

170mm

Diameter (MAX)

140mm

Antenna Weight (G.W)

210g

Application Indoor

Parts Material

ABS Polymer

Storage Temperature

-10 to +60

Operating Temperature -10 to +60
Operating Humidity 35%~60% non-condensing
Storage Humidity 35%~50% non-condensing

Safety, Emission and other

CE, FCC, RoHS
