Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
-
2.4GHz-2.5GHz 3dbi ISM Band
-
IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan
-
Omni Directional Multipoint applications
-
Bluetooth, Point to Multipoint
-
Public Wireless Hotspot
-
WiFi,RFID
-
Wireless Video Systems
Features:
- Installed for Collinear Vertical Polarization
-
Indoor antenna for public Hot spots
-
RoHS Compliant
|
Frequency Range |
2400MHz - 2500MHz |
|---|---|
|
V.S.W.R (MAX) |
2.0: 1 |
|
Antenna Type |
Collinear |
| Radiation | Omni Directional |
|
Gain (MAX) |
3 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
0.5 Watts |
|
Vertical Beam-width |
50 Deg |
|
Horizontal Beam-width |
360 Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Sleeve Dipole |
|
Internal Material |
Copper and Coaxial Cable |
|
Connector |
RP-SMA-Male |
|

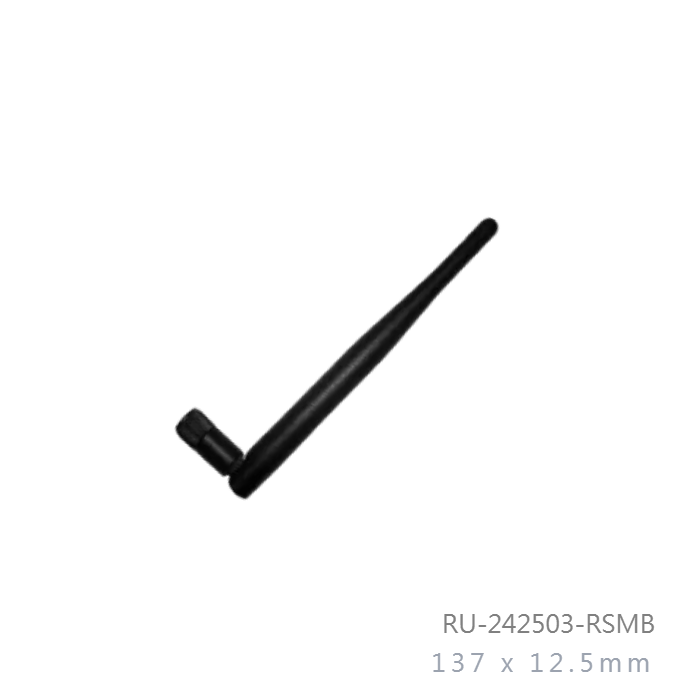

Length (MAX) |
137mm |
|---|---|
|
Diameter (MAX) |
12.5mm |
|
Antenna Weight (G.W) |
25g |
|
Application |
Indoor |
| Radome Material | Rubber |
|
Parts Material |
ABS With Copper |
|
Installation Style |
180 and 90 Deg rotation |
| Storage Temperature | -5 to +40 |
| Operating Temperature | -5 to +40 |
| Operating Humidity |
35%~60% non-condensing |
|
Storage Humidity |
35%~50% non-condensing |
| Safety, Emission and other | CE, FCC, RoHS |
